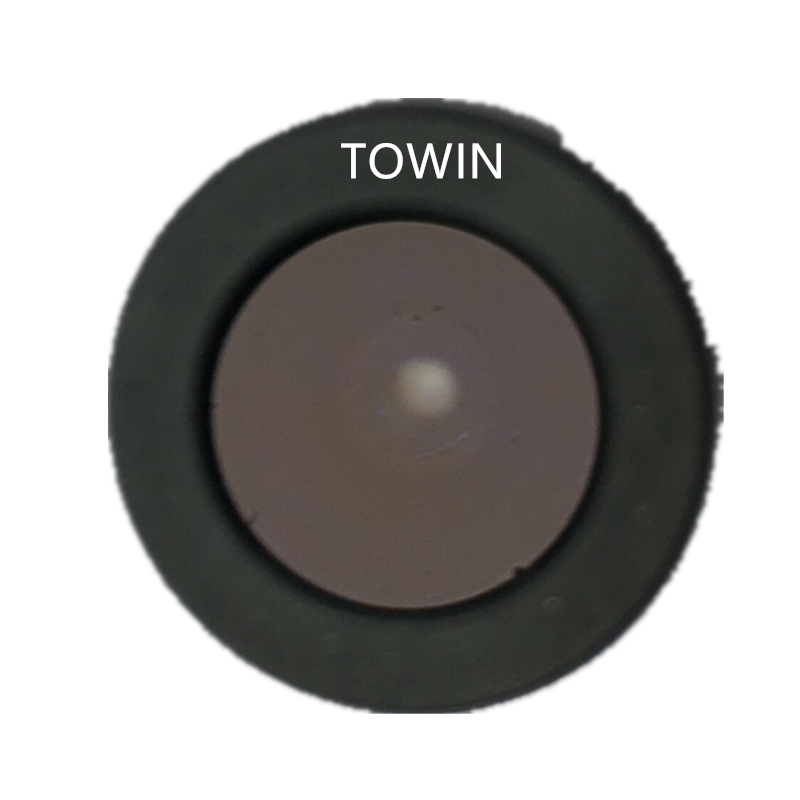

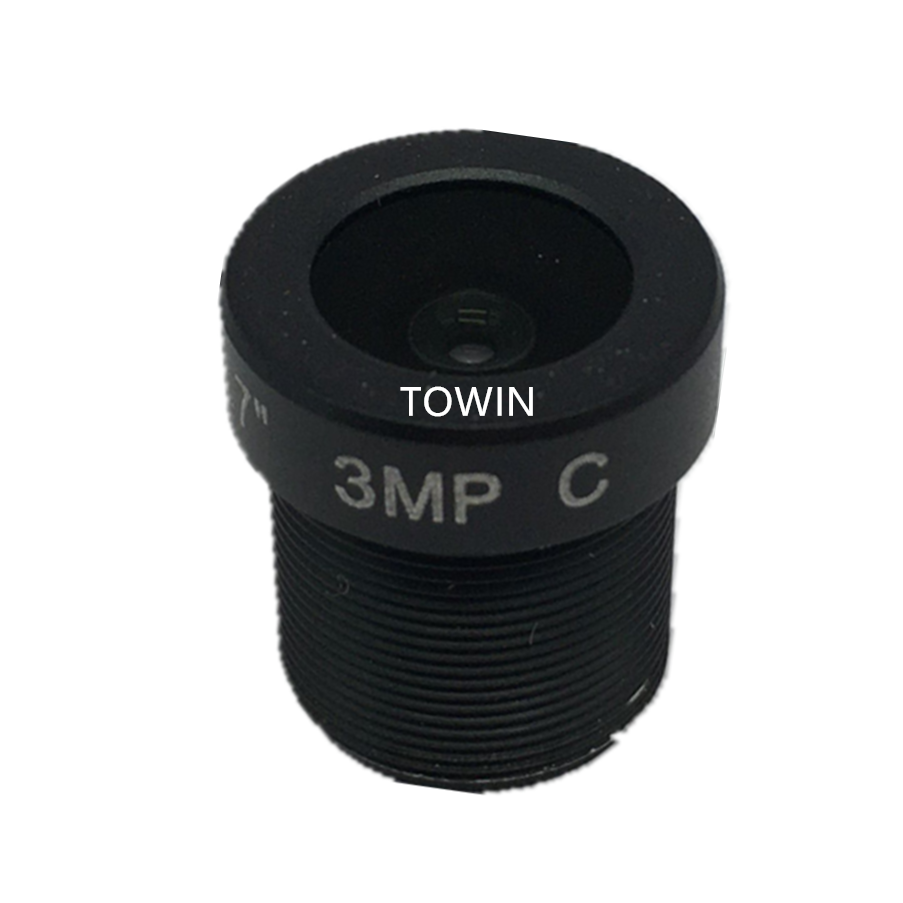

CCL127036MP

広角レンズ 1/2.7″ CCTVレンズ 3.6mmの焦点距離

Categories: Sマウント　レンズ, 広角ボードレンズ Tag: TOWIN

Description
Additional information

CCL127036MPは広い場所で使用できる広角レンズです。センサーは1/2.7″です。CCTVレンズです。アイリスの値はＦ2.6で、マウント12レンズです。解析度は3メガピクセルです。

IMAGE FORMAT	1/2.7″
FOCAL LENGTH	3.6mm
F.O.V.	120°(D)
	96°(H)
	72°(V)
RESOLUTION	3Megapixel
APERTURE	F2.6
MOUNT	M12X0.5
IRIS	Fixed
FOCUS	Manual
ZOOM	Fixed
B.F.L.	5.7mm
M.O.D.	0.3m
LENS COMPOMEMT	5G

Download Specs Sheet

Online contact

SENSOR	1/2.7"
E.F.L.
H. F.O.V.	96°
RESOLUTION	3MP
FNo.	2.6
IRIS	Fixed
MOUNT	M12x0.5
T.T.L.(mm)	20.6
FEATURE	Wide Angle
MARK	HOT LENSES
