D14271312713A3
D14271312713P3
03/01/2020
CS271312713A3
03/01/2020

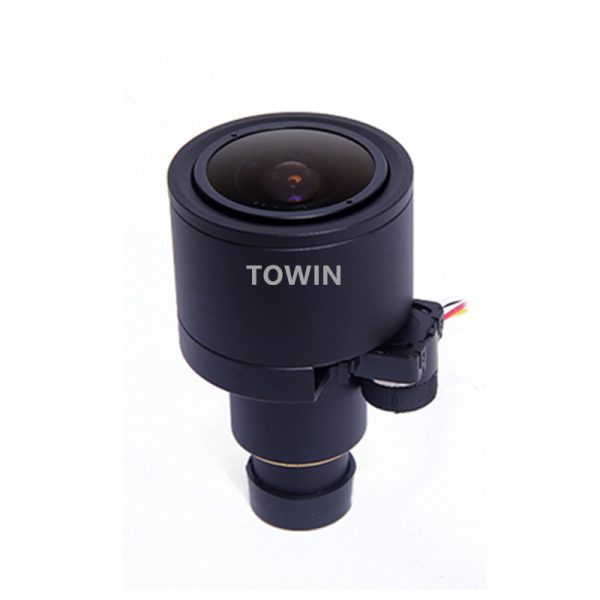

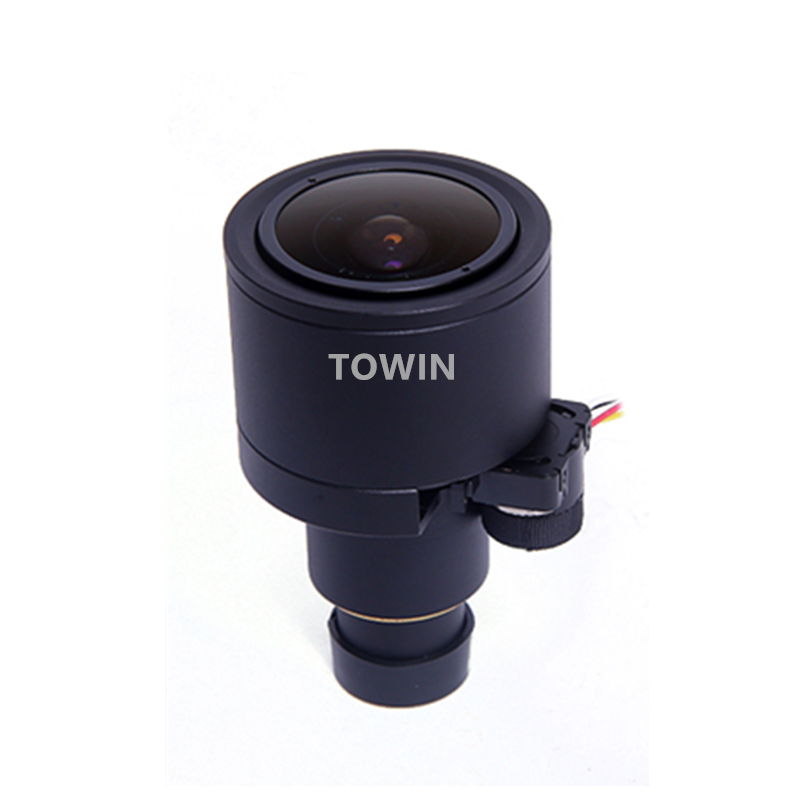

D14271312713A3 is a 2.7-13mm varifocal CCTV Φ14 mount lens. It is designed for 1/2.7″ sensor such as OV2710, AR0237. And it is a 3 megapixel HD lens with Auto Iris F1.3 for low light IP camera. It is an Infrared lens for Day Night security video surveillance.
| IMAGE FORMAT | 1/2.7″ |
| FOCAL LENGTH | 2.7-13mm |
| H F.O.V. | 122°~23° |
| RESOLUTION | 3 MegaPixel |
| DISTORTION | -80%~-2% |
| APERTURE | F1.3-C |
| MOUNT | Φ14 |
| IRIS | Auto |
| FOCUS | Manual |
| ZOOM | Manual |
| M.O.D. | 0.1m |
| IR | Corrected |
