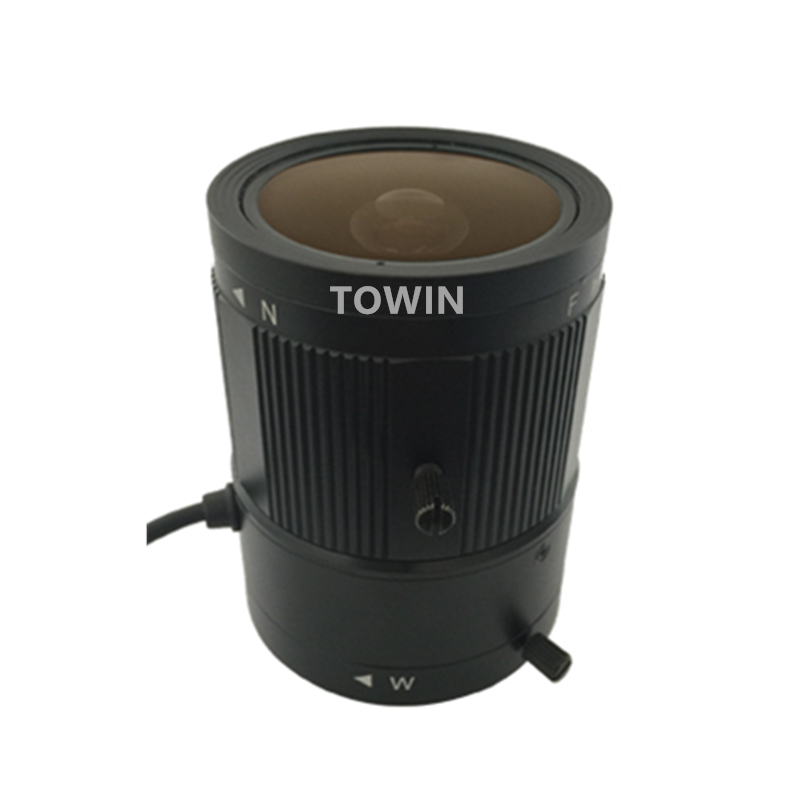

C381811816A3 is a 3.8-18mm varifocal CCTV C mount lens. It is designed for 1/1.8″ sensor such as imx185, imx385, imx178 for Traffic monitoring, security applications. And it is a 3 megapixel HD lens with Auto Iris F1.6 for low light IP camera. It is an Infrared lens for Day Night video surveillance.
| IMAGE FORMAT | 1/1.8″ |
| FOCAL LENGTH | 3.8-18mm |
| H F.O.V. | 114°~26° |
| RESOLUTION | 3 MegaPixel |
| DISTORTION | -81%~-2.5% |
| APERTURE | F1.6-C |
| MOUNT | C |
| IRIS | Auto |
| FOCUS | Manual |
| ZOOM | Manual |
| M.O.D. | 0.1m |
| IR | Corrected |
