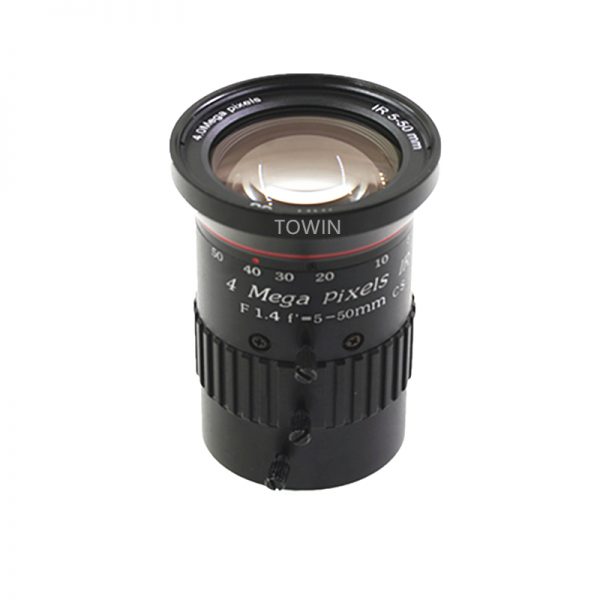

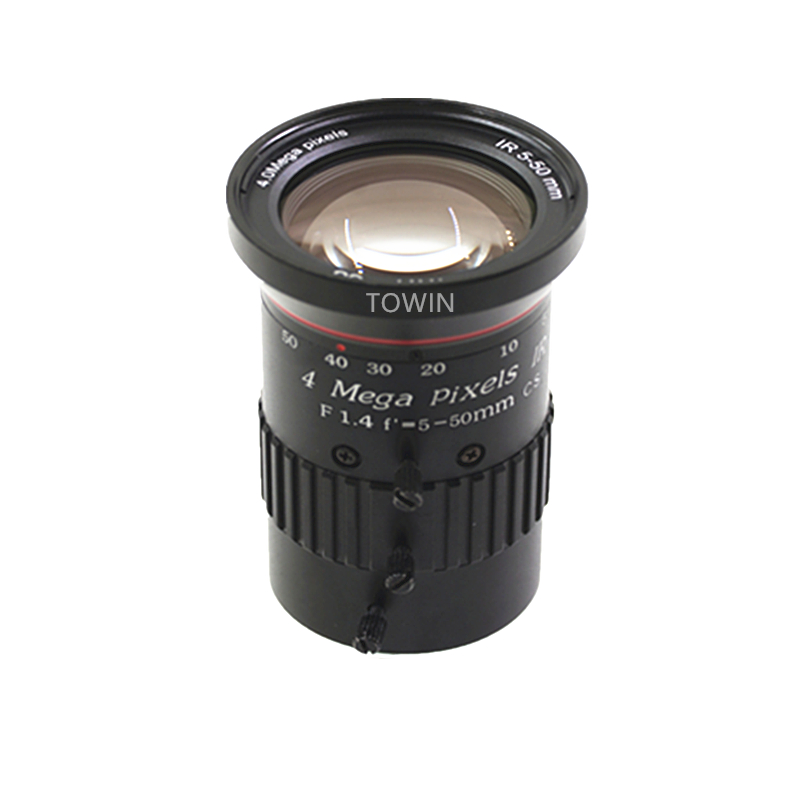

CCL1270550MMPR

5-50mm CCTV CS-mount lens, IR corrected for day and night surveillance, 1/3″, 1/2.7″, 4Megapixel, Manual Iris, F1.4.

Categories: CS-Mount Lenses, Manual Iris HD CCTV Lens, Varifocal Day&Night Lens Tag: TOWIN

Description
Additional information

CCL1270550MMPR is a 5-50mm CCTV CS-mount lens. And it is IR corrected for day and night surveillance. It is for 1/3″, 1/2.7″, 3-4Megapixel sensors with Manual Iris. And the large aperture F1.4 is suitable for low light security.

IMAGE FORMAT	1/2.7″&1/3″
FOCAL LENGTH	5-50mm
H F.O.V.@1/2.7″	50.9°~6.2°
H F.O.V.@1/3″	46°~5.5°
RESOLUTION	4 Megapixel
APERTURE	F1.4
MOUNT	CS
IRIS	Manual
FOCUS	Manual
ZOOM	Manual
M.O.D.	1.5m
B.F.L.	8.1-15.72mm
IR	Corrected

Download Specs Sheet

Online contact

SENSOR	1/2.7"
E.F.L.	5-50mm
H. F.O.V.	50.9°~6.2°
RESOLUTION	3MP
Max Dist.	5%
FNo.	1.4
IRIS	Manual
MOUNT	CS
T.T.L.(mm)	85.4
FEATURE	IR Corrected, CCTV
