C0802316M5

2/3″, 8mm low distortoin wide angle C mount industrial lens, 5MP, manual iris.

Categories: 2/3” 5-10Megapixel FA lens, C-Mount Lenses Tag: TOWIN

Description
Additional information

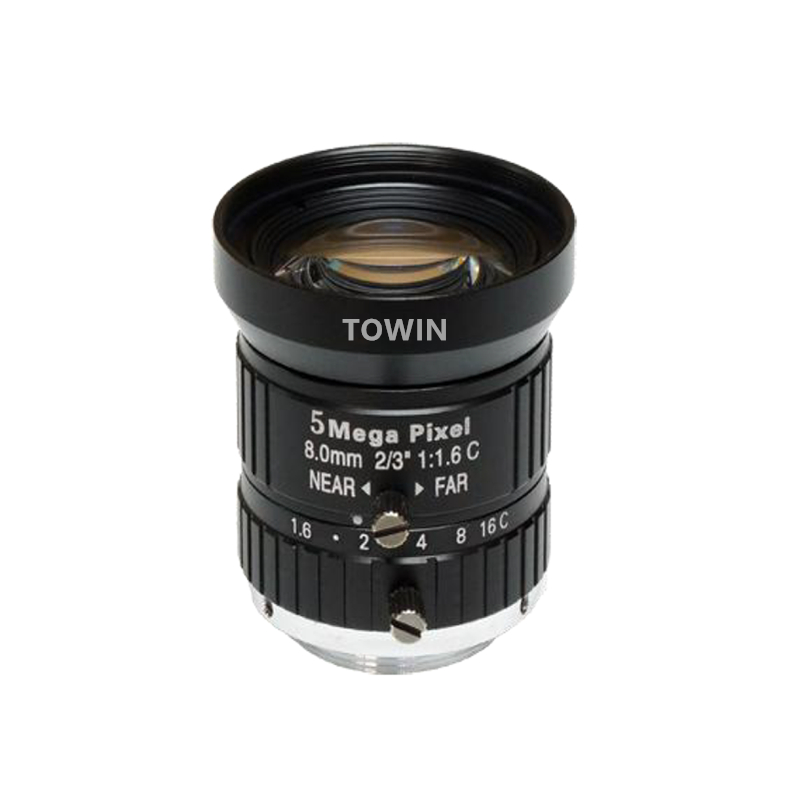

C0802316M5 is a 8mm industrial C-mount lens. It is designed for 2/3″ sensor such as SONY ICX674ALG/AQG, CMV2000…. It is a wide angle and low distortion, 5 Megapixel HD lens. And it is a fixed focal, Manual Iris lens, using in Biology Recognition and barcode recognition…

IMAGE FORMAT	2/3″
FOCAL LENGTH	8mm
F.O.V.	67°(D)
	56°(H)
	43°(V)
RESOLUTION	5 MP
APERTURE	F1.6~C
DISTORTION	<0.75%
MOUNT	C-Mount
B.F.L.	5mm
IRIS	Manual
FOCUS	Manual
ZOOM	Manual
M.O.D.	0.1m

Download Specs Sheet

Online contact

SENSOR	2/3"
E.F.L.	8mm
H. F.O.V.	56°
RESOLUTION	5MP
Max Dist.	0.75%
MOUNT	C
FNo.	1.6
IRIS	Manual
FEATURE	FA Lens
T.T.L.(mm)	59
