S03412510232F
S03412510232F

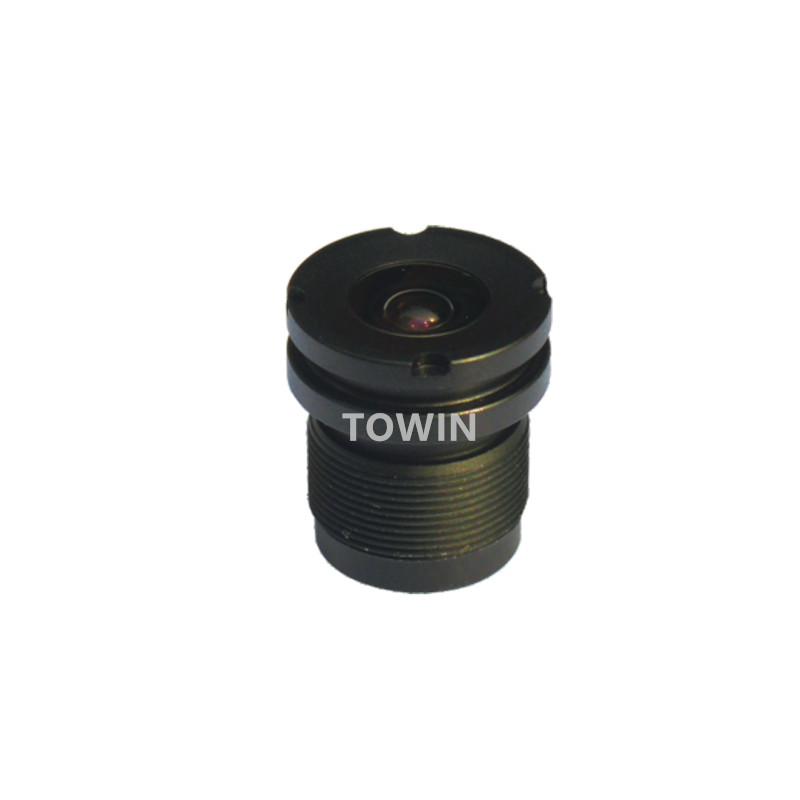

1/2.5″ 3.4mm IP67 Automotive S-Mount lens, 5 Megapixel HD lens with wide angle HFOV 102 degree.
S03412510232F is a 3.4mm IP67 Automotive M12 S-Mount lens. It is designed for 1/2.5″ sensors, such as IMX317, MT9P031. It is a 5 Megapixel HD lens with wide angle HFOV 102 degree and short T.T.L. 18mm.
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 3.4mm |
| F.O.V. | 135° |
| 102° | |
| 74° | |
| RESOLUTION | 5 MP |
| TV DISTORTION | <-28% |
| APERTURE | F3.2 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 18mm |
| STRUCTURE | 7G+IRCF |
| MARK | IP67 |

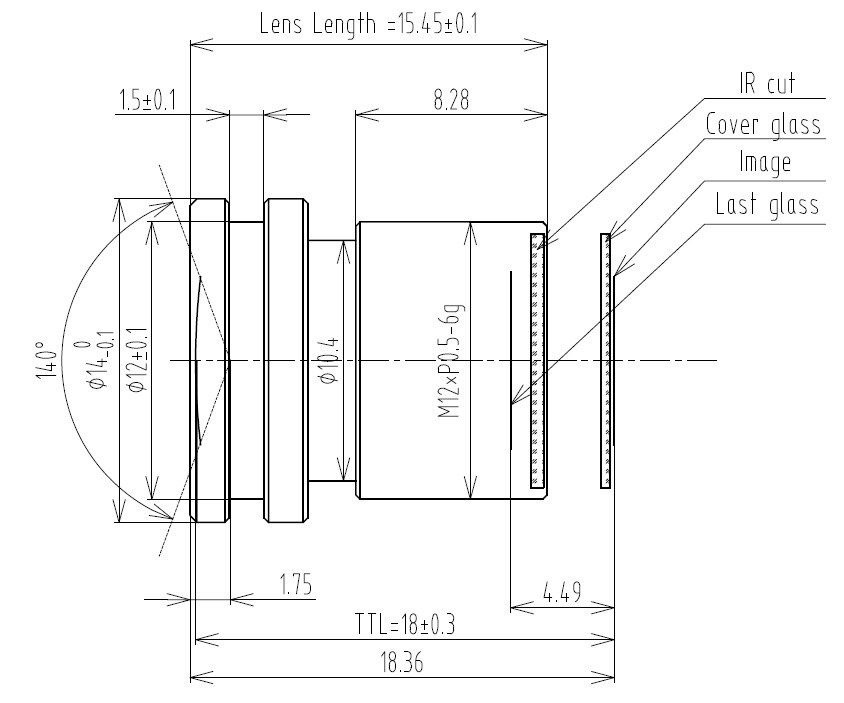

S03412510232F 3.4mm IP67 Automotive S-Mount lens-1
