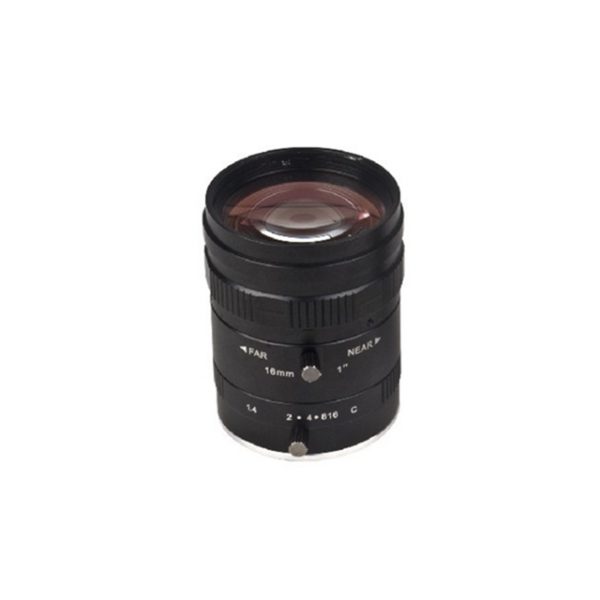

CCL1116MMPC

1″ 16mm C-mount ITS lens low distortion 1% manual iris F1.4

Description
Additional information

CCL1116MMPC is 1″ 16mm C-mount intelligent traffic systems (ITS) lens. It has very low distortion max 1% and 5 megapixel. It is manual Iris. And the largest aperture F1.4 for low light road monitoring.

IMAGE FORMAT	1″
FOCAL LENGTH	16mm
F.O.V.	52°(D)
	44°(H)
	39°(V)
RESOLUTION	5MP
APERTURE	1.4
DISTORTION	<1%
MOUNT	C
B.F.L.	19.7mm
IRIS	Manual
FOCUS	Manual
ZOOM	Manual
M.O.D.	0.5m

Download Specs Sheet

Online contact

SENSOR	1″
E.F.L.	16mm
H. F.O.V.	44°
RESOLUTION	5MP
FNo.	1.4
Max Dist.	1%
MOUNT	C
IRIS	Manual
FEATURE	ITS Lens
