CCL118040MPFR

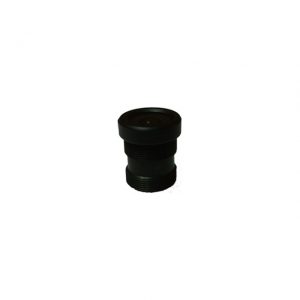

Low distortion wide angle 4mm 85° M12 mount lens 1/1.8″ with HD 6MP rectilinear scanning
CCL118040MPFR Low distortion wide angle 4mm 85° M12 mount lens 1/1.8″ with HD 6MP rectilinear scanning
| IMAGE FORMAT | 1/1.8″ |
| FOCAL LENGTH | 4.0mm |
| F.O.V. | 98°(D) |
| 85°(H) | |
| 70°(V) | |
| RESOLUTION | 6 MP |
| DISTORTION | <-0.4% |
| APERTURE | F2.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.4m |
| T.T.L. | 21.98mm |
| DIMENSION | Φ14×18.7mm |
| LENS COMPOMEMT | 2G2P+IR cut |
CCL118040MPFR Low distortion wide angle 4mm 85° M12 mount lens with HD 6MP rectilinear scanning
