Low distortion CCTV 4.9mm M12 mount lens 1/1.8″ IR corrected for IMX 178 HD 6MP
CCL118049MP Low distortion CCTV 4.9mm M12 mount lens 1/1.8″ IR corrected for IMX 178 HD 6MP
| IMAGE FORMAT | 1/1.8″ |
| FOCAL LENGTH | 4.9mm |
| F.O.V.(@IMX178) | 100°(D) |
| 86°(H) | |
| 54°(V) | |
| RESOLUTION | 6 MP |
| TV DISTORTION | <-8% |
| APERTURE | F2.2 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.3m |
| T.T.L. | 32.9mm |

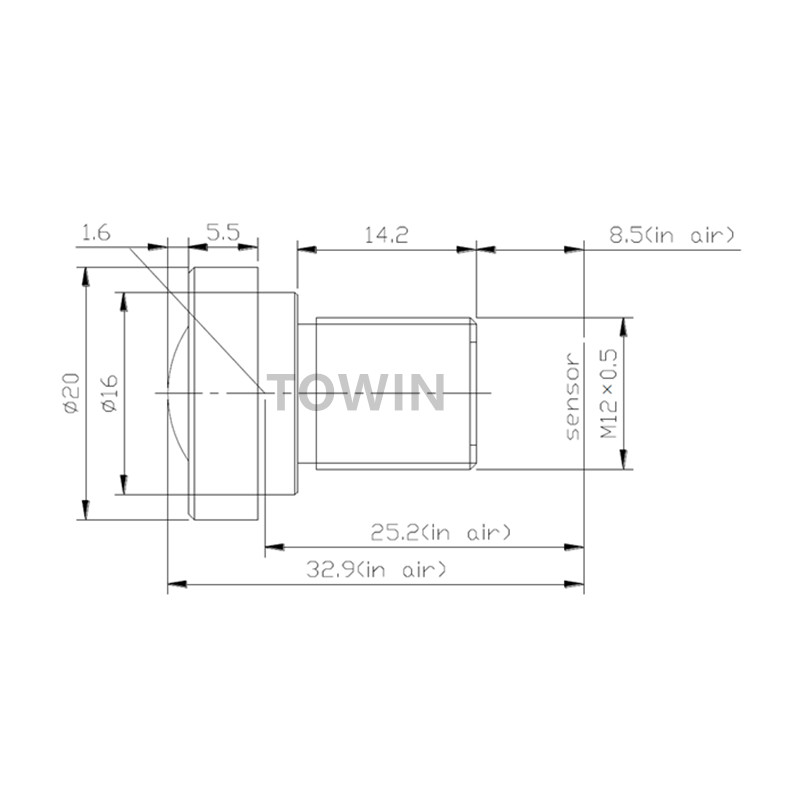

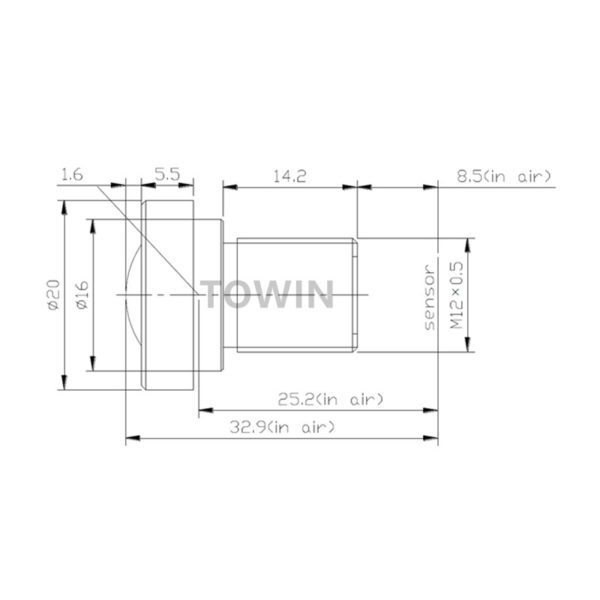

| DIMENSION | Φ20×24.4mm |
| IR | Corrected |
CCL118049MP Low distortion CCTV 4.9mm M12 mount lens IR corrected for IMX 178 HD 6MP
