CCL118080MP

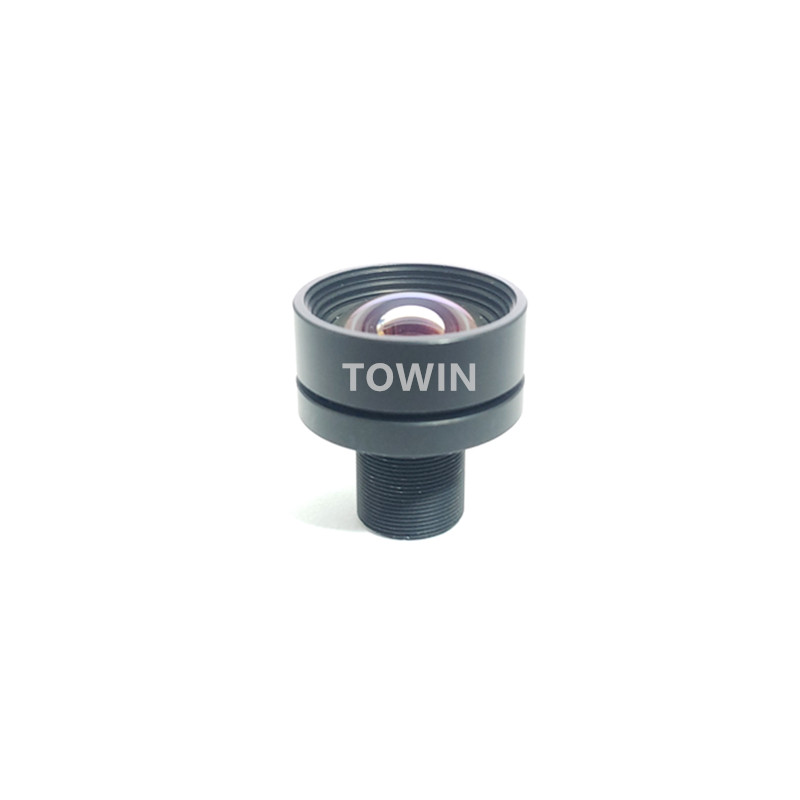

Low distortion industrial 8mm 49° M12 mount board lens 1/1.8″ motion capture F1.8 HD MP
CCL118080MP Low distortion industrial 8mm 49° M12 mount board lens 1/1.8″ motion capture F1.8 HD MP
| IMAGE FORMAT | 1/1.8″ |
| FOCAL LENGTH | 8mm |
| F.O.V. | 59°(D) |
| 49°(H) | |
| 37°(V) | |
| RESOLUTION | Megapixel |
| DISTORTION | <-0.9% |
| APERTURE | F1.8 |
| MOUNT(mm) | M12x0.5 |
| IRIS | Fixed |
| B.F.L. | 8.04mm |
| T.T.L. | 33.39mm |
| DIMENSION | Φ14×11.8mm |
| LENS COMPOMEMT | 8G |
| IR | Corrected |
CCL118080MP Low distortion industrial 8mm 49° M12 mount board lens motion capture F1.8 HD MP-1
CCL118080MP Low distortion industrial 8mm 49° M12 mount board lens motion capture F1.8 HD MP
