Low distortion 12mm F5.6 M12 S-mount board lens 1/1.8″ HD 5MP for rectilinear scanning
CCL11812MPRF Low distortion 12mm F5.6 M12 S-mount board lens 1/1.8″ HD 5MP for rectilinear scanning
| IMAGE FORMAT | 1/1.8″, 1/2″, 2/3″ |
| FOCAL LENGTH | 12mm |
| F.O.V.(1/1.8″) | 41°(D) |
| 33°(H) | |
| 25°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-1.5% |
| APERTURE | F5.6 |
| MOUNT(mm) | M12x0.5 |
| IRIS | Fixed |
| R.I. | >82.5% |
| TTL | 17.79 |

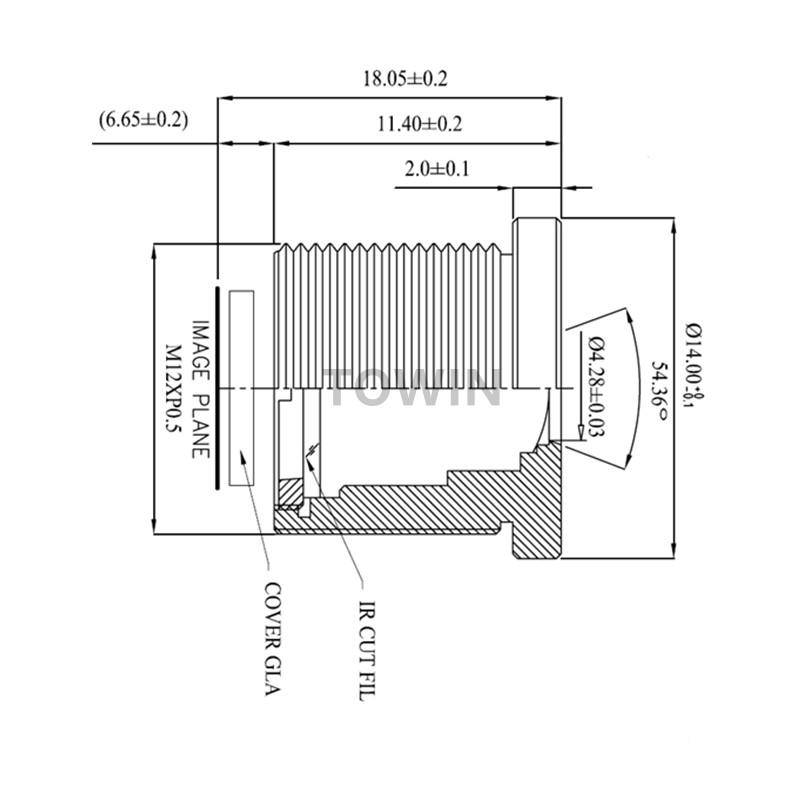

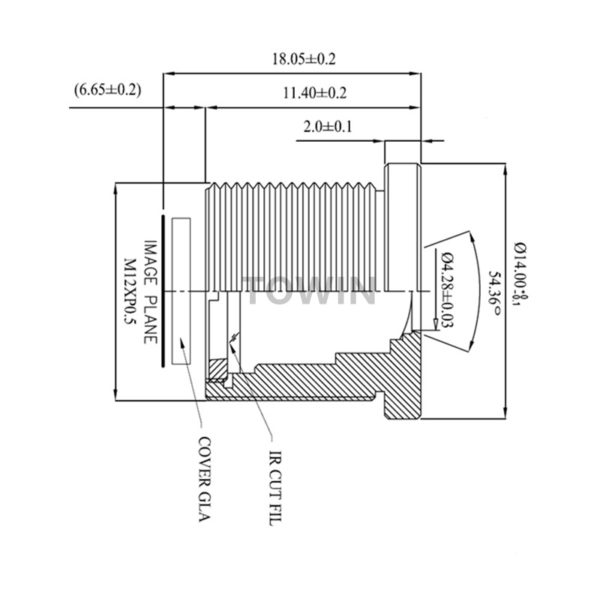

| DIMENSION | Φ14×11.40mm |
| CONSTRUCTION | 6G+IRF |
CCL11812MPRF Low distortion 12mm F5.6 M12 S-mount board lens HD 5MP for rectilinear scanning
