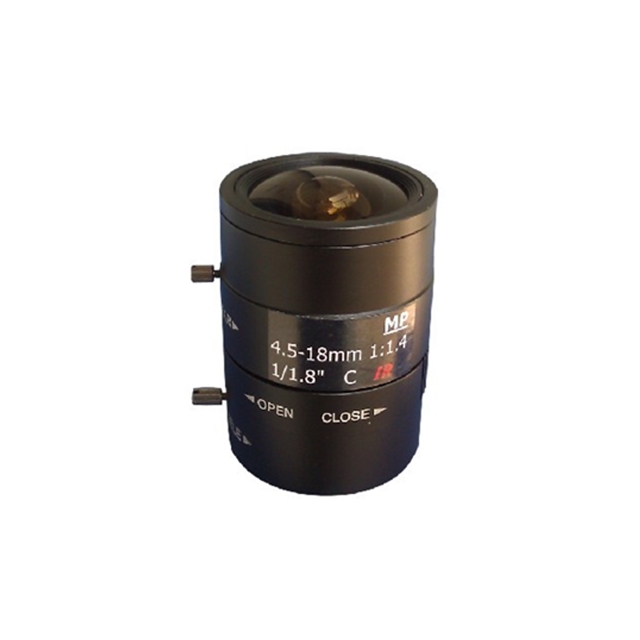

CCL1184518MMPCR2

1/1.8″ IR corrected C mount for traffic monitoring,

largest aperture F1.4 for low light surveillance,

4.5-18mm vari-focal length, Manual Iris for day and night application.

Description
Additional information

CCL1184518MMPCR2 is a 1/1.8″ IR corrected C mount lens for traffic monitoring. The aperture could be opened to F1.4 for low light surveillance. It is 4.5-18mm vari-focal length, Manual Iris for day and night application.

IMAGE FORMAT	1/1.8″
FOCAL LENGTH	4.5-18mm
D F.O.V.	137°~31°
H F.O.V.	104°~23°
RESOLUTION	3MP
APERTURE	F1.4
MOUNT	C
IRIS	Manual
FOCUS	Manual
ZOOM	Manual
M.O.D.	0.3m
IR	Corrected

Download Specs Sheet

Online contact

SENSOR	1/1.8"
E.F.L.	4.5-18mm
H. F.O.V.	104°~23°
RESOLUTION	3MP
FNo.	1.4
MOUNT	C
IRIS	Manual
FEATURE	IR Corrected
