CCL12015MP
CCL12015MP
Fisheye CCTV HD lens IR corrected 1/2.3″ Φ4.5 M12 lens 185° 8MP F2.5 security surveillance
CCL12015MP Fisheye CCTV HD lens IR corrected 1/2.3″ Φ4.5 M12 lens 185° 8MP F2.5 security surveillance
| IMAGE FORMAT | Φ4.5mm |
| FOCAL LENGTH | 1.5mm |
| F.O.V. | 185°(D) |
| 185°(H) | |
| 185°(V) | |
| RESOLUTION | 8 MP |
| DISTORTION | -104% |
| APERTURE | F2.5 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.3m |
| T.T.L. | 27.4mm |

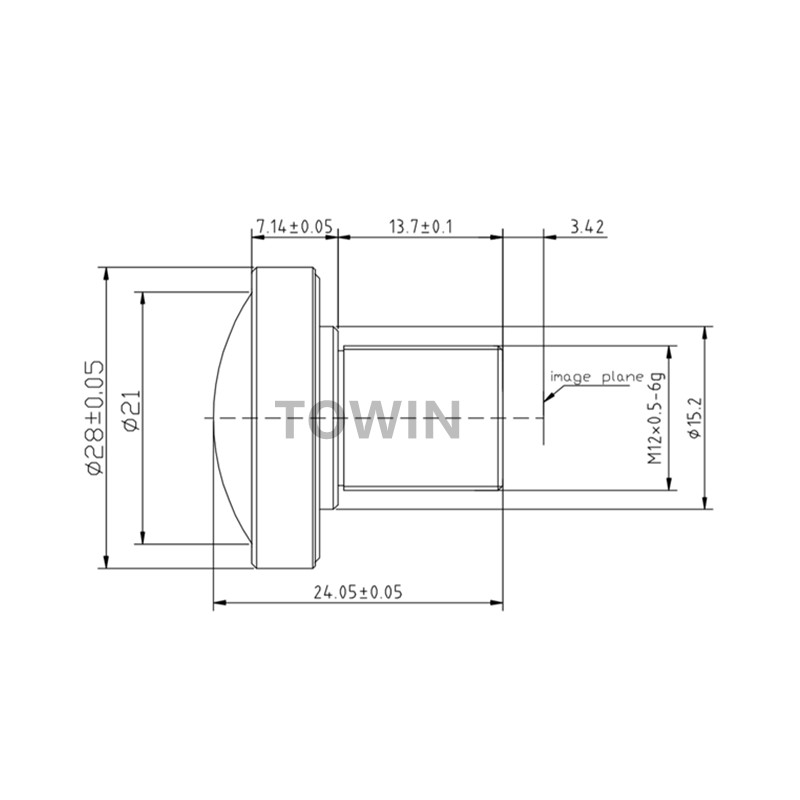

| DIMENSION(mm) | Φ28x24mm |
| IR | Corrected |
CCL12015MP Fisheye CCTV HD lens IR corrected Φ4.5 M12 lens 185° 8MP F2.5 security surveillance
