CCL12017MP

Fisheye CCTV HD lens Φ4.8 195° M12 mount lens 5MP F2.0 security surveillance lens

Description
Additional information

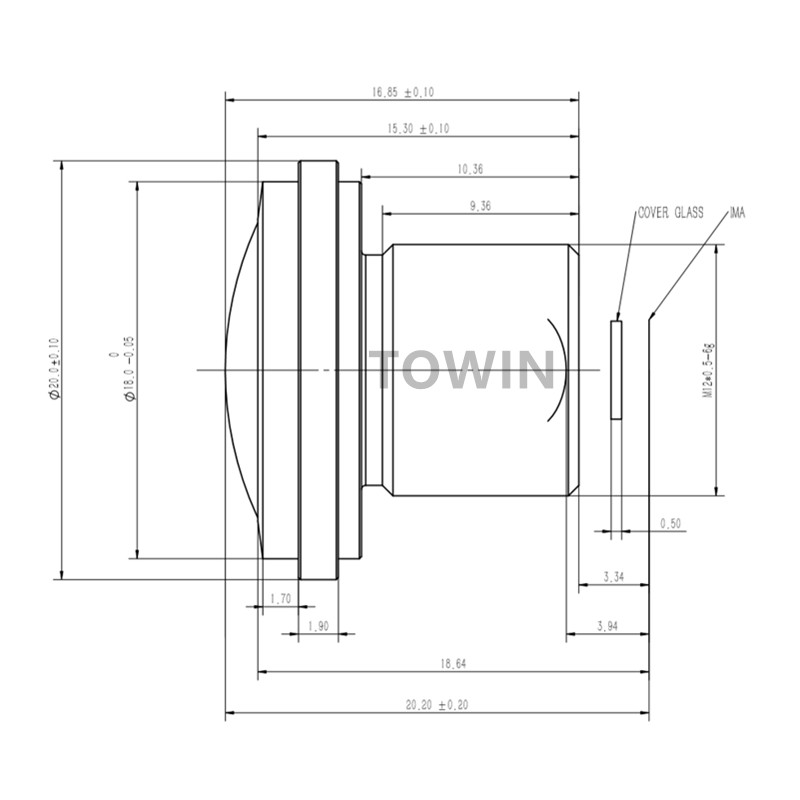

CCL12017MP Fisheye CCTV HD lens Φ4.8 195° M12 mount lens 5MP F2.0 security surveillance lens

IMAGE FORMAT	Φ4.8
FOCAL LENGTH	1.7mm
F.O.V.	195°(D)
	195°(H)
	195°(V)
RESOLUTION	5 MP
DISTORTION	<-118%
APERTURE	F2.0
MOUNT	M12x0.5
IRIS	Fixed
M.O.D.	0.1m
T.T.L.	20.2mm
CONSTRUCTION	5G+1MG

CCL12017MP Fisheye CCTV HD lens Φ4.8 195° M12 mount lens 5MP F2.0 security surveillance lens

Download Specs Sheet

Online contact

SENSOR	Φ4.8
E.F.L.	1.7mm
H. F.O.V.	195°
FNo.	2.0
Max Dist.	118%
IRIS	Fixed
MOUNT	M12x0.5
RESOLUTION	5MP
T.T.L.(mm)	20.2
FEATURE	Fisheye, CCTV
MARK	HOT LENSES
