CCL1212MPR
1/2″, 12mm F1.8 M12 S mount CCTV lens IR correted for day and night security.
CCL1212MPR is a 12mm M12 S-mount CCTV lens. It is for 1/2″ sensors Aptina MT9M001, MT9T001 with F1.8 for low light IP camera. And it is an Infrared lens for Day Night security video surveillance.
| IMAGE FORMAT | 1/2″ |
| FOCAL LENGTH | 12mm |
| F.O.V. | 39°(D) |
| 30°(H) | |
| 23°(V) | |
| RESOLUTION | 5Megapixel |
| APERTURE | F1.8 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 8.3mm |
| M.O.D. | 0.3m |
| CONSTRUCTION | 6G |
| IR | Corrected |

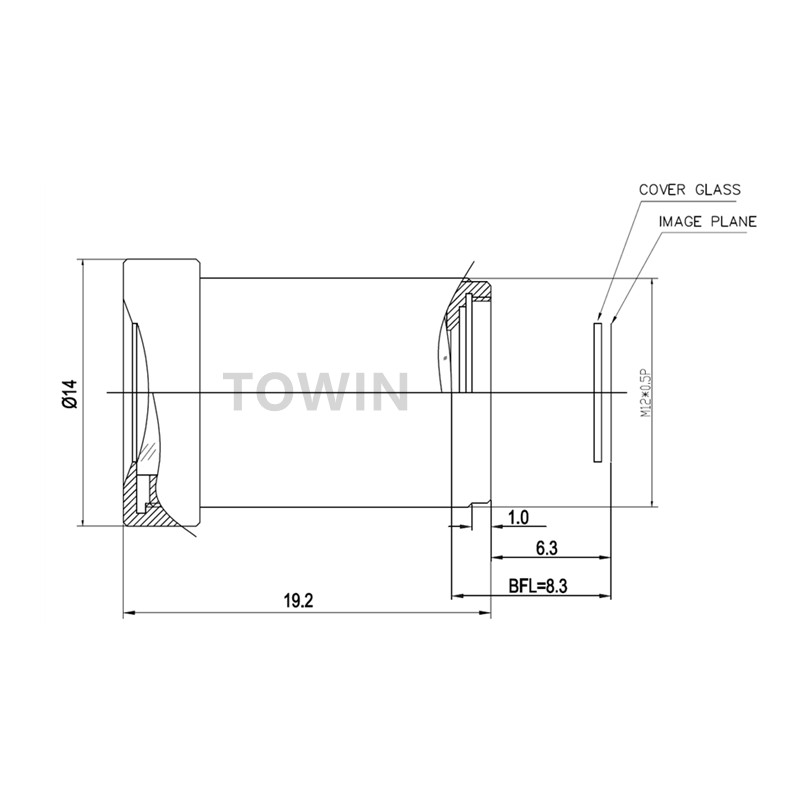

CCL1212MPR 12mm M12 S mount CCTV lens
