CCL12301518MP
CCL2302423MPF
05/26/2020
CCL12301720MPF
05/26/2020
CCL12301518MP

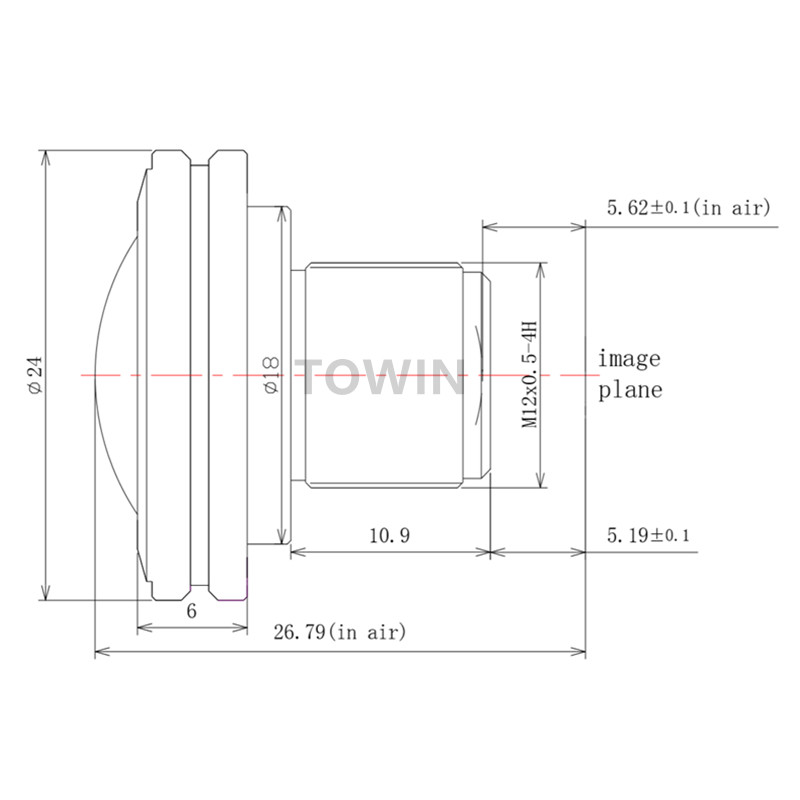

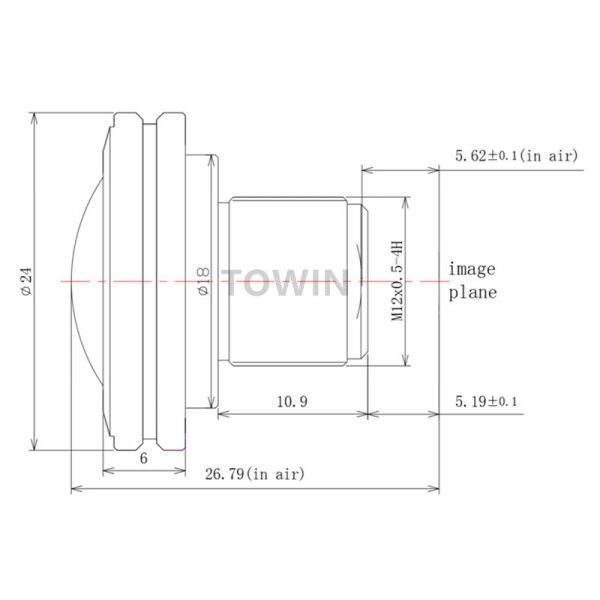

Fisheye lens HD CCTV IR corrected 1/2.3″ Φ4.2 190° M12 lens 5MP F1.8 360 panoramic security surveillance
CCL12301518MP Fisheye lens HD CCTV IR corrected 1/2.3″ Φ4.2 190° M12 lens 5MP F1.8 360 panoramic security surveillance
| IMAGE FORMAT | Φ4.2, 1/2.3″ |
| FOCAL LENGTH | 1.5mm |
| F.O.V. | 190°(D) |
| 190°(H) | |
| 190°(V) | |
| RESOLUTION | 14 Megapixel |
| OPTICAL DISTORTION | <-99% |
| APERTURE | F1.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 26.79mm |
| B.F.L. | 5.62mm |
| COMPONENT | 9G |
CCL12301518MP Fisheye lens HD CCTV IR corrected Φ4.2 190° M12 lens 5MP F1.8 360 panoramic security surveillance
