CCL123028MPF

IMX206 M12 S-mount Wide angle Board lens

Description
Additional information

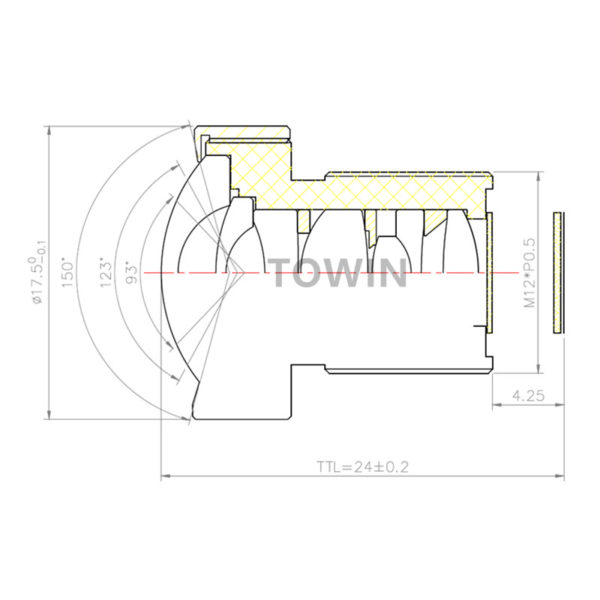

CCL123028MPF IMX206 M12 S-mount Wide angle Board lens

IMAGE FORMAT	1/2.3“
FOCAL LENGTH	2.8mm
F.O.V.	150°
	125°
	93°
RESOLUTION	16 MP
OPTICAL DISTORTION	<-59%
APERTURE	F2.4
MOUNT	M12x0.5
IRIS	Fixed
M.O.D.	0.2m
T.T.L.	24mm
CONSTRUCTION	6G1ASP+IRCF

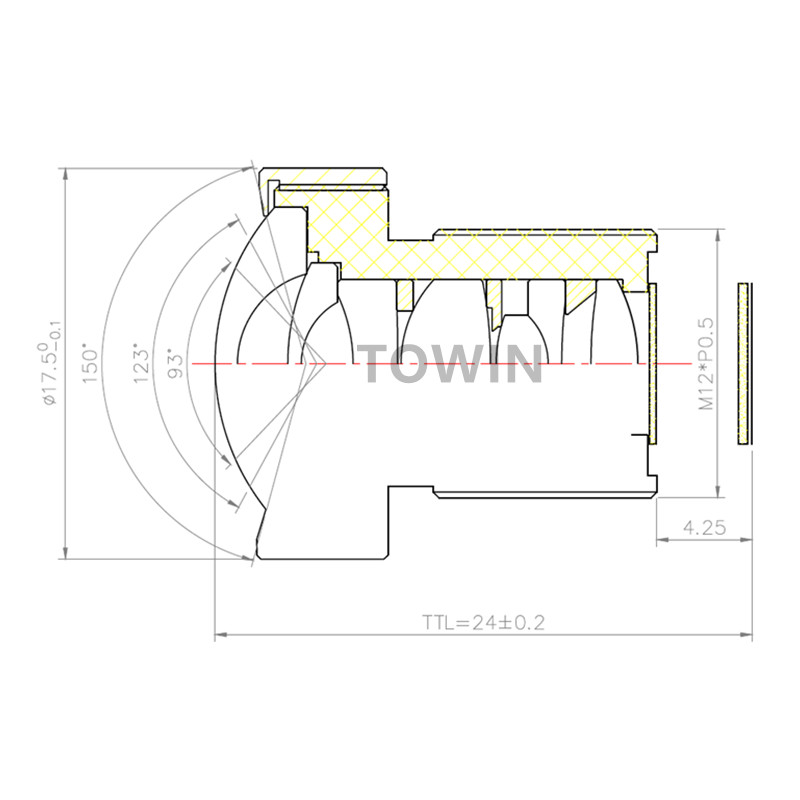

CCL123028MPF IMX206 M12 S-mount Wide angle Board lens

Download Specs Sheet

Online contact

SENSOR	1/2.3"
E.F.L.	2.8mm
H. F.O.V.	125°
FNo.	2.4
Max Dist.	59%
IRIS	Fixed
MOUNT	M12x0.5
T.T.L.(mm)	24
FEATURE	Wide Angle
RESOLUTION	16MP
MARK	HOT LENSES
