Low distortion wide angle M12 S-mount board lens 1/2.3″ 3mm F4.0 HD 5MP rectilinear scanning
CCL123030MPFR Low distortion wide angle M12 S-mount board lens 1/2.3″ 3mm F4.0 HD 5MP rectilinear scanning
| IMAGE FORMAT | 1/2.3″, 1/2″, 1/2.5″, 1/3″ |
| FOCAL LENGTH | 3mm |
| F.O.V.(1/2.3″) | 104°(D) |
| 92°(H) | |
| 75°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-1% |
| APERTURE | F4.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.01m |
| T.T.L. | 20.9mm |

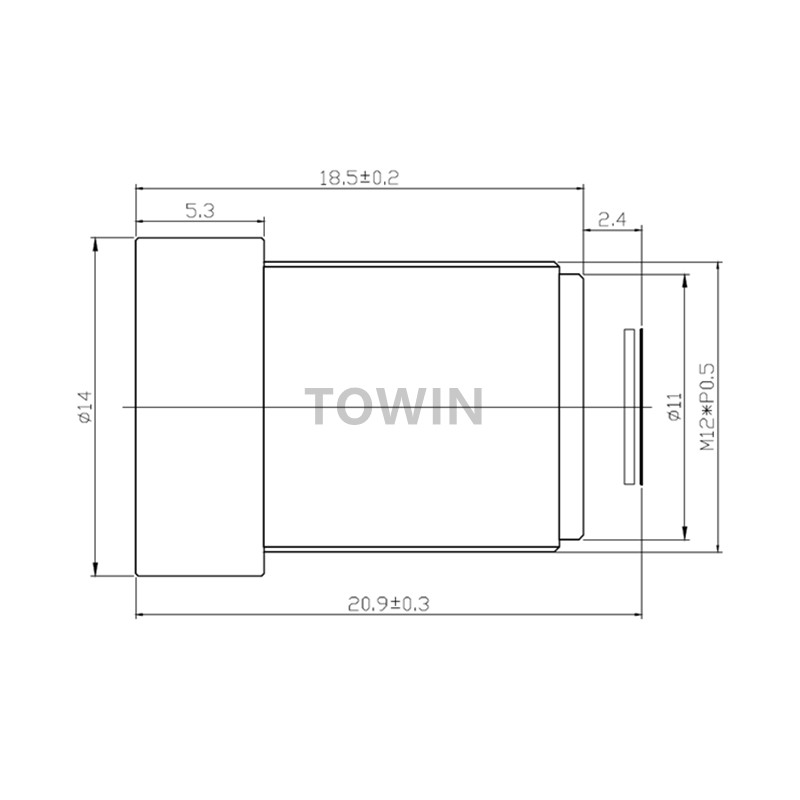

| DIMENSION | Φ14×18.5mm |
| CONSTRUCTION | 6E+IRF |
CCL123030MPFR Low distortion wide angle M12 S-mount board lens 3mm F4.0 HD 5MP rectilinear scanning
