CCL12315MP
CCL12315MP

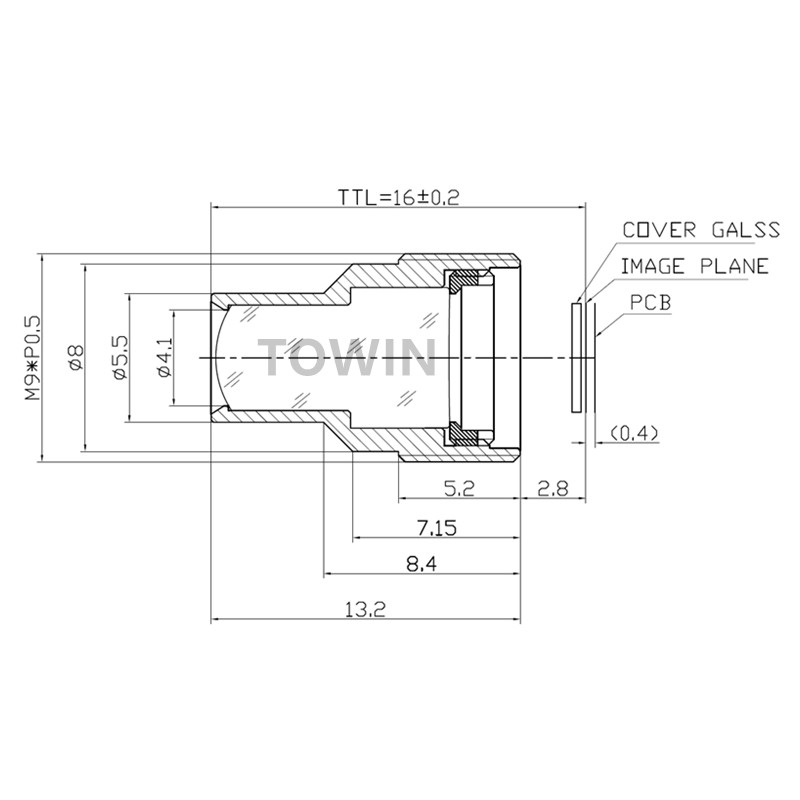

Low distortion 15mm F8.0 M9 board lens 1/2.3″ HD 5MP rectilinear scanning short TTL
CCL12315MP Low distortion 15mm F8.0 M9 board lens 1/2.3″ HD 5MP rectilinear scanning short TTL
| IMAGE FORMAT | 1/2.3″ |
| FOCAL LENGTH | 15mm |
| F.O.V. | 29°(D) |
| 23°(H) | |
| 17.5°(V) | |
| RESOLUTION | 5MP |
| DISTORTION | <-1% |
| APERTURE | F8.0 |
| MOUNT | M9X0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| B.F.L. | 5.84mm |
| TTL | 13.2 |
| CONSTRUCTION | 4G |
CCL12315MP Low distortion 15mm F8.0 M9 board lens HD 5MP rectilinear scanning short TTL
