Low distortion wide angle 3.5mm 1/2.5″ F5.6 M12 mount lens with HD 5MP rectilinear scanning
CCL125035MPR Low distortion wide angle 1/2.5″ 3.5mm F5.6 M12 mount lens with HD 5MP rectilinear scanning
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 3.5mm |
| F.O.V. | 90°(D) |
| 80°(H) | |
| 65°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-0.4% |
| APERTURE | F5.6 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 19mm |

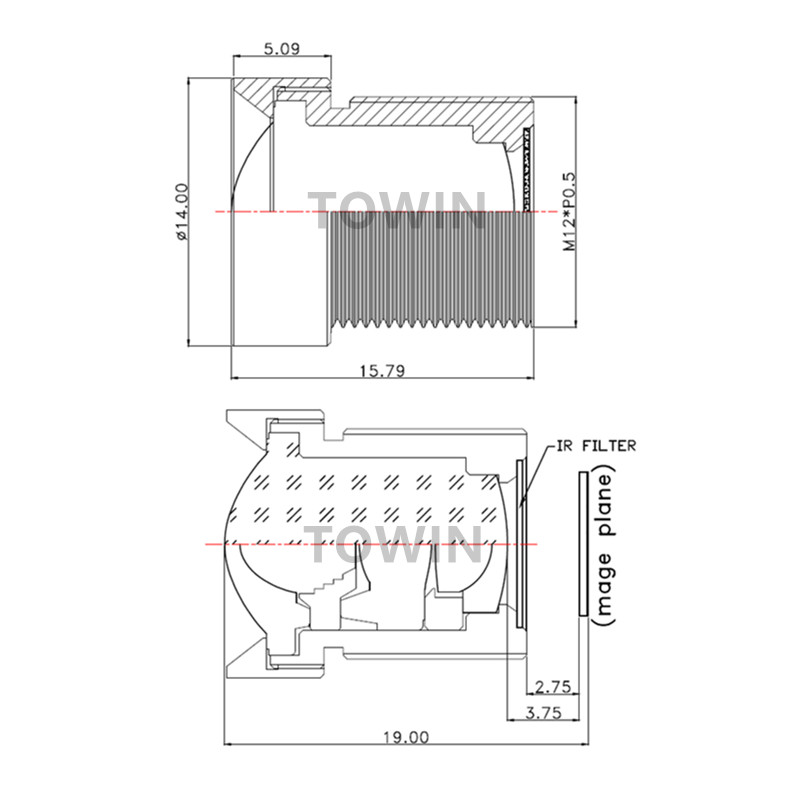

| DIMENSION | Φ14×15.79mm |
| LENS COMPOMEMT | 2G2P |
CCL125035MPR Low distortion wide angle 3.5mm F5.6 M12 mount lens with HD 5MP rectilinear scanning
