Low distortion wide angle 1/2.5″ 4.1mm 66° M12 mount lens with HD 5MP for rectilinear scanning
CCL125041MPFR Low distortion wide angle 1/2.5″ 4.1mm 66° M12 mount lens with HD 5MP for rectilinear scanning
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 4.1mm |
| F.O.V. | 83°(D) |
| 66°(H) | |
| 49°(V) | |
| RESOLUTION | 8 MP |
| DISTORTION | <-0.4% |
| APERTURE | 2.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 19.7mm |

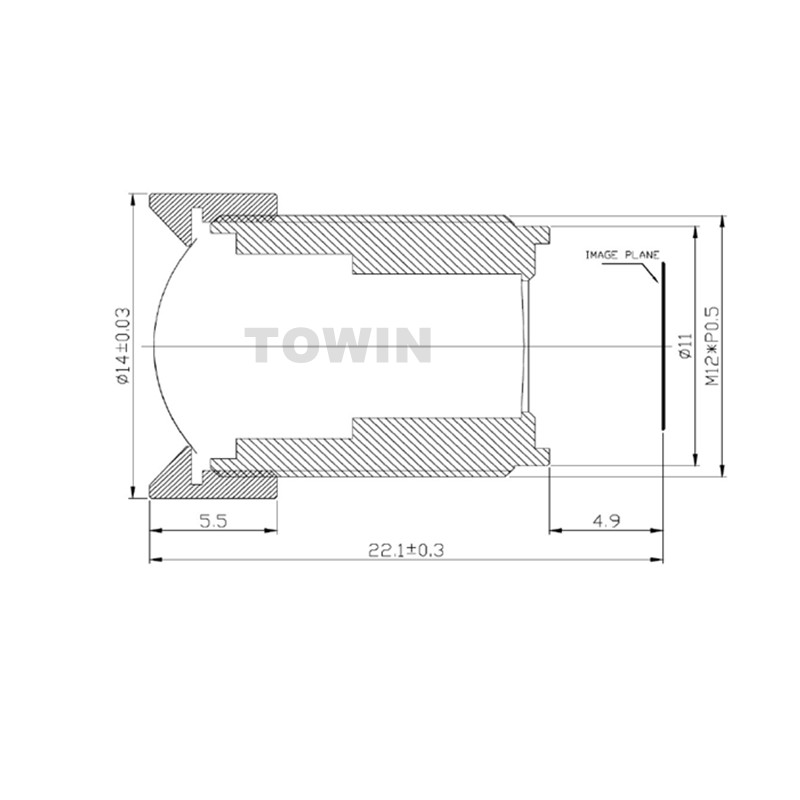

| DIMENSION | Φ14×17.2mm |
| LENS COMPOMEMT | 3G2P+IR cut |
CCL125041MPFR Low distortion wide angle 4.1mm 66° M12 mount lens with HD 5MP for rectilinear scanning
