CCL125080MP
HD CCTV M12 S-mount board lens 8mm IR corrected 5MP for MT9P031 F1.8 security
CCL125080MP HD CCTV M12 S-mount board lens 8mm IR corrected 5MP for MT9P031 F1.8 security
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 8mm |
| F.O.V. | 56°(D) |
| 44°(H) | |
| 33°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <12.9% |
| APERTURE | F1.8 |
| MOUNT(mm) | M12x0.5 |
| IRIS | Fixed |
| B.F.L. | 7.8mm |
| T.T.L. | 26.20mm |

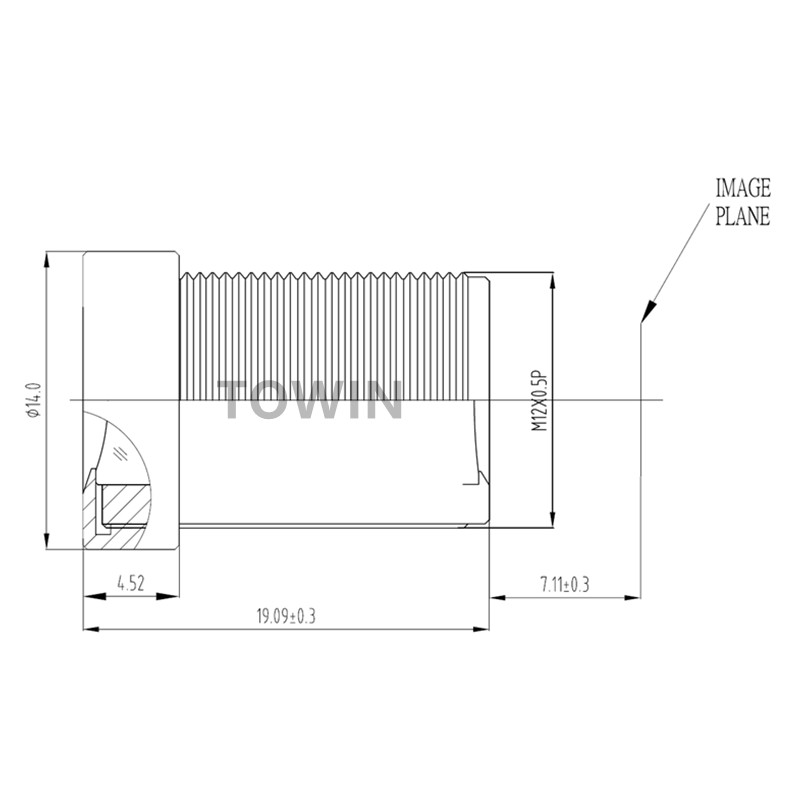

| DIMENSION | Φ14×19.1mm |
| CONSTRUCTION | 6G |
CCL125080MP HD CCTV M12 S-mount board lens 8mm IR corrected 5MP for MT9P031 F1.8 security
