CCL125080MPR M12 S-mount 8mm HD CCTV board lens IR corrected for MT9P031.
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 8mm |
| F.O.V. | 56°(D) |
| 44°(H) | |
| 33°(V) | |
| RESOLUTION | 3 MP |
| DISTORTION | <12.9% |
| APERTURE | F1.8 |
| MOUNT(mm) | M12x0.5 |
| IRIS | Fixed |
| B.F.L. | 8.08mm |
| T.T.L.(mm) | 23.85 |

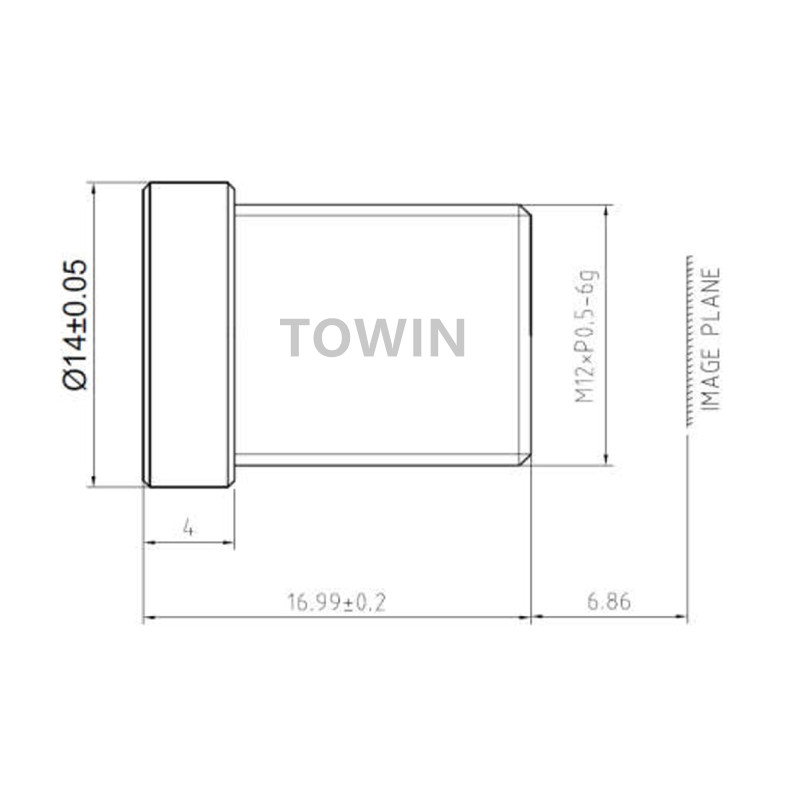

| DIMENSION | Φ14×16.99mm |
| CONSTRUCTION | 6G |
CCL125080MPR M12 S-mount 8mm HD CCTV board lens IR corrected for MT9P031
