HD CCTV 12mm M12 S-mount board lens F1.8 5MP MT9P031 low distortion surveillance
CCL12512MPR HD CCTV 12mm M12 S-mount board lens F1.8 5MP MT9P031 low distortion surveillance
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 12mm |
| F.O.V.@1/2.5″ | 35°(D) |
| 27°(H) | |
| 20°(V) | |
| F.O.V.@1/2.7″ | 32°(D) |
| 28°(H) | |
| 16°(V) | |
| RESOLUTION | 5Megapixel |
| APERTURE | F1.8 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |

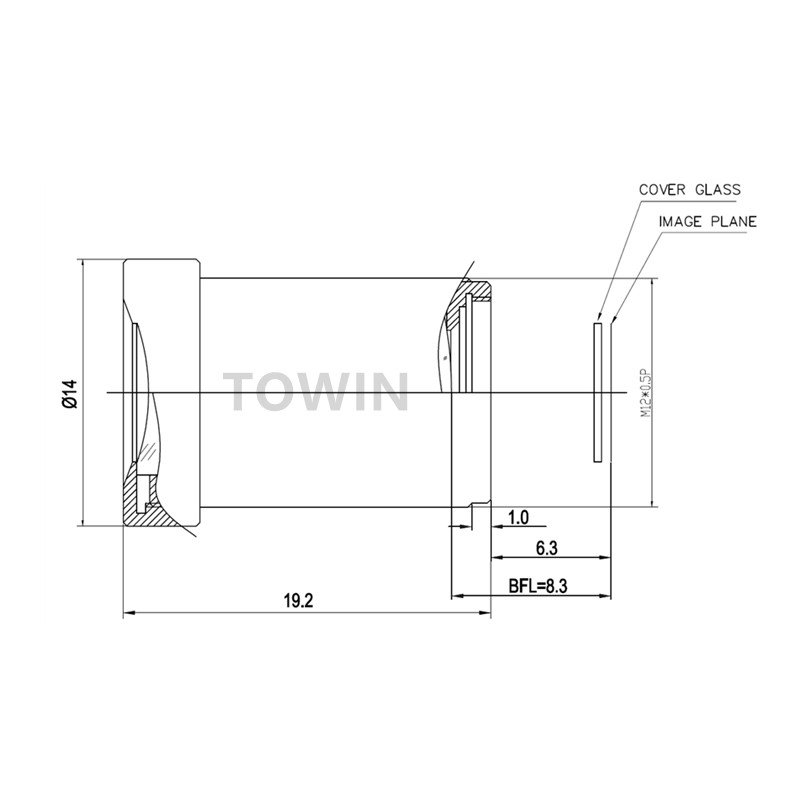

| B.F.L. | 8.3mm |
| TTL | 25.5 |
| M.O.D. | 0.3m |
| COMPONEMT | 6G |
