CCL1256017MP
CCL1256017MP

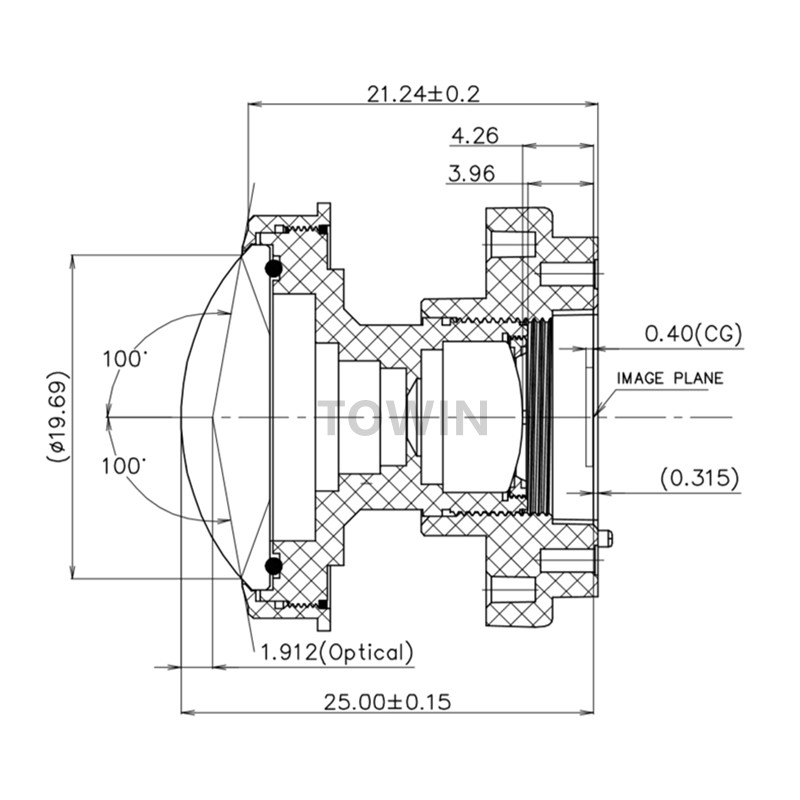

Fisheye M12 mount lens 1/2.56″ Φ5.6 automotive lens waterproof IP68 for car rear 360 panoramic view
CCL1256017MP Fisheye M12 mount lens 1/2.56″ Φ5.6 automotive lens waterproof IP68 for car rear 360 panoramic view
| IMAGE FORMAT | Φ5.56, 1/2.56″ |
| FOCAL LENGTH | 1.7mm |
| F.O.V.(OV10640) | 200°(D) |
| 200°(H) | |
| 200°(V) | |
| RESOLUTION | 1.3Megapixel |
| OPTICAL DISTORTION | <-97 |
| APERTURE | F2.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 25mm |
| B.F.L. | 4.26mm |
| COMPONENT | 7G |
CCL1256017MP Fisheye M12 mount lens Φ5.6 automotive lens waterproof IP68 for car rear 360 panoramic view
