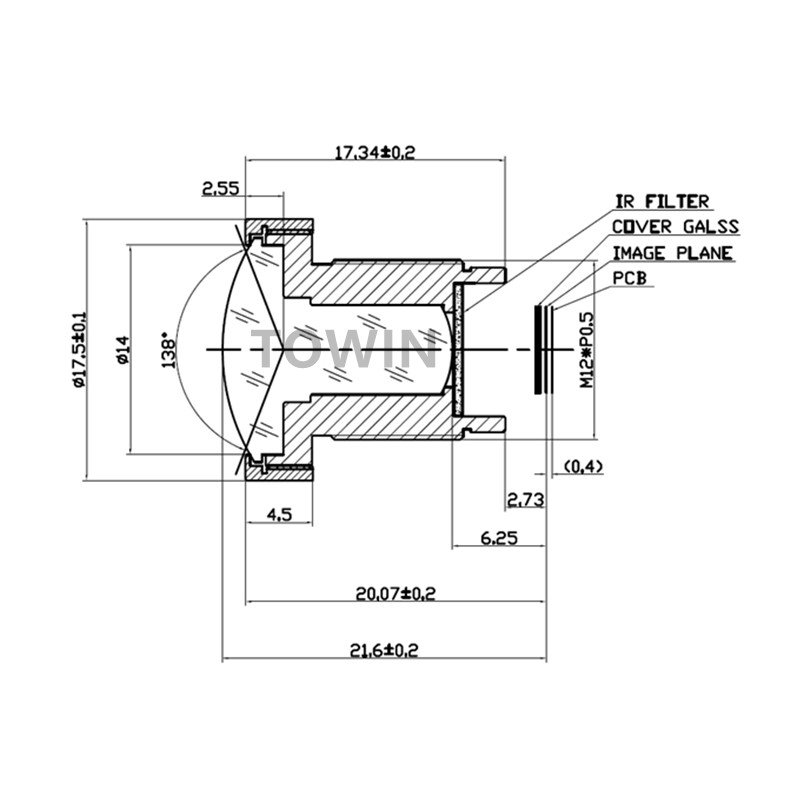

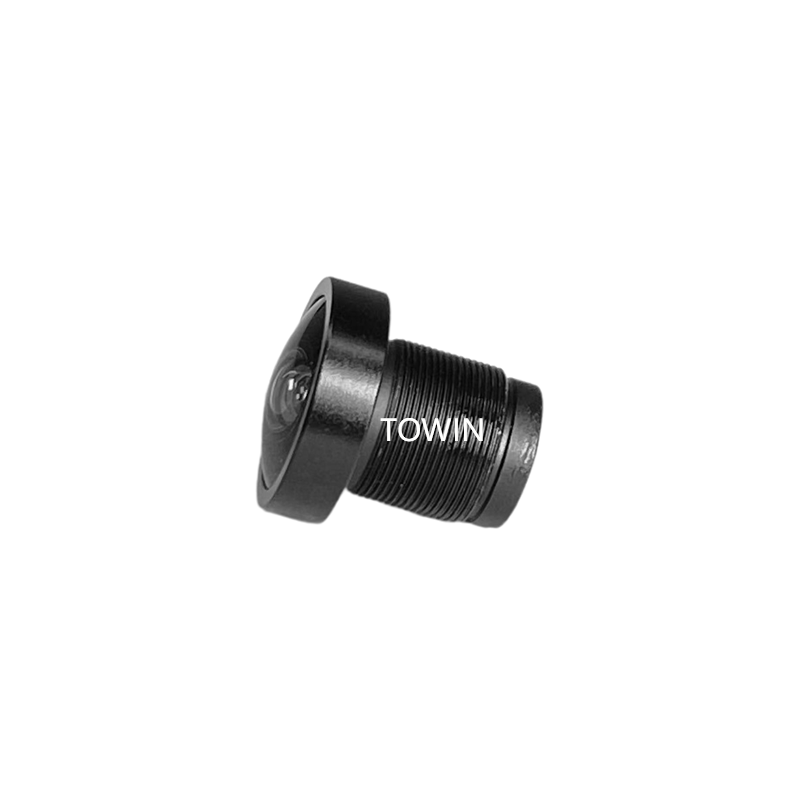

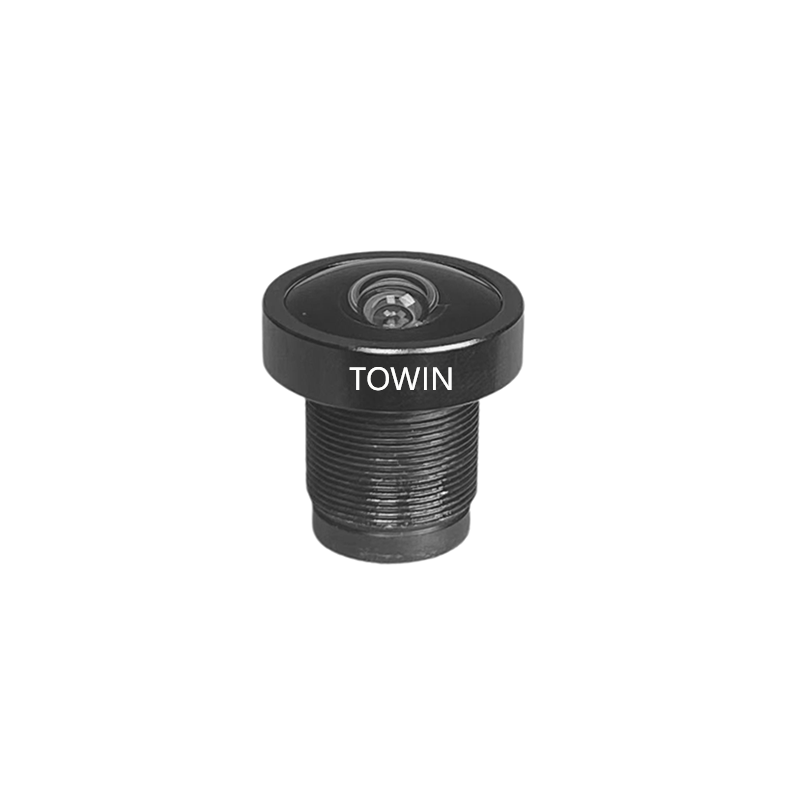

CCL127028MPFR M12 S-mount wide angle 2.8mm board lens for OV2710 1/2.7″ 2MP
| IMAGE FORMAT | 1/2.7″ |
| FOCAL LENGTH | 2.8mm |
| F.O.V. | 138°(D) |
| 120°(H) | |
| 67°(V) | |
| RESOLUTION | 2Megapixel |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 6.25mm |
| T.T.L.(mm) | 21.6 |
| M.O.D. | 0.2m |
| CONSTRUCTION | 6G |
CCL127028MPFR M12 S-mount wide angle 2.8mm board lens
