CCL12711MP
Fisheye CCTV HD lens IR corrected 1/3″ Φ3.4 M12 lens 185° 5MP F2.0 security surveillance
CCL12711MP Fisheye CCTV HD lens IR corrected 1/3″ Φ3.4 M12 lens 185° 5MP F2.0 security surveillance
| IMAGE FORMAT(mm) | 1/3″ Φ3.4 |
| FOCAL LENGTH(mm) | 1.1 |
| F.O.V. | 185°(D) |
| 185°(H) | |
| 185°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-92% |
| APERTURE | 2.0 |
| MOUNT(mm) | M12x0.5 |
| IRIS | Fixed |
| B.F.L.(mm) | 3.77 |
| M.O.D.(m) | 0.1 |
| T.T.L.(mm) | 35.90 |

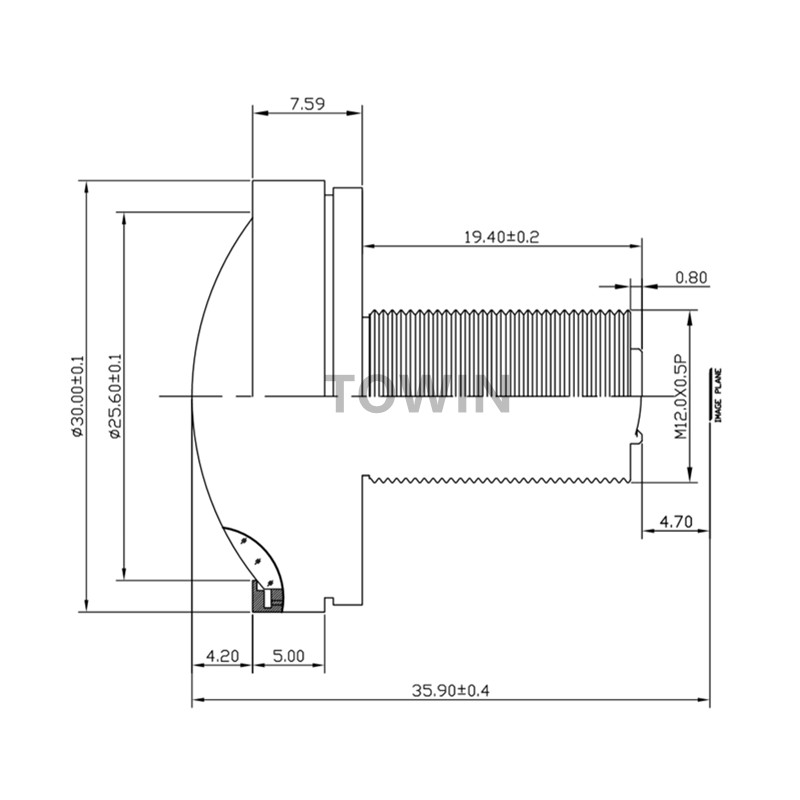

| DIMENSION(mm) | Φ30×31.20 |
CCL12711MP Fisheye CCTV HD lens IR corrected Φ3.4 M12 lens 185° 5MP F2.0 security surveillance
