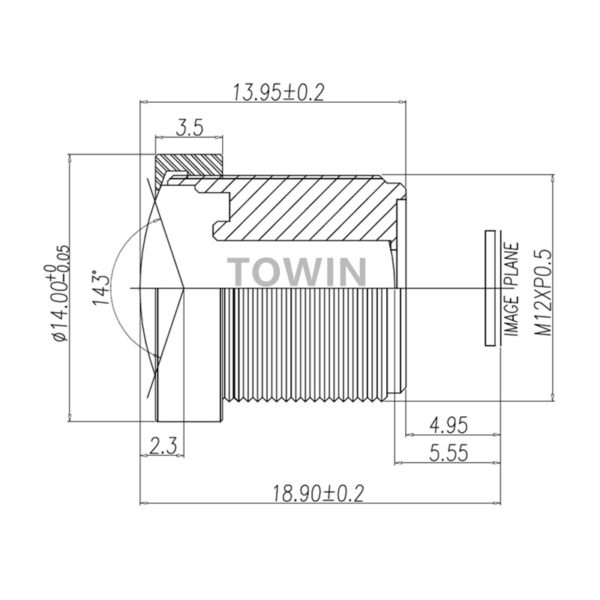

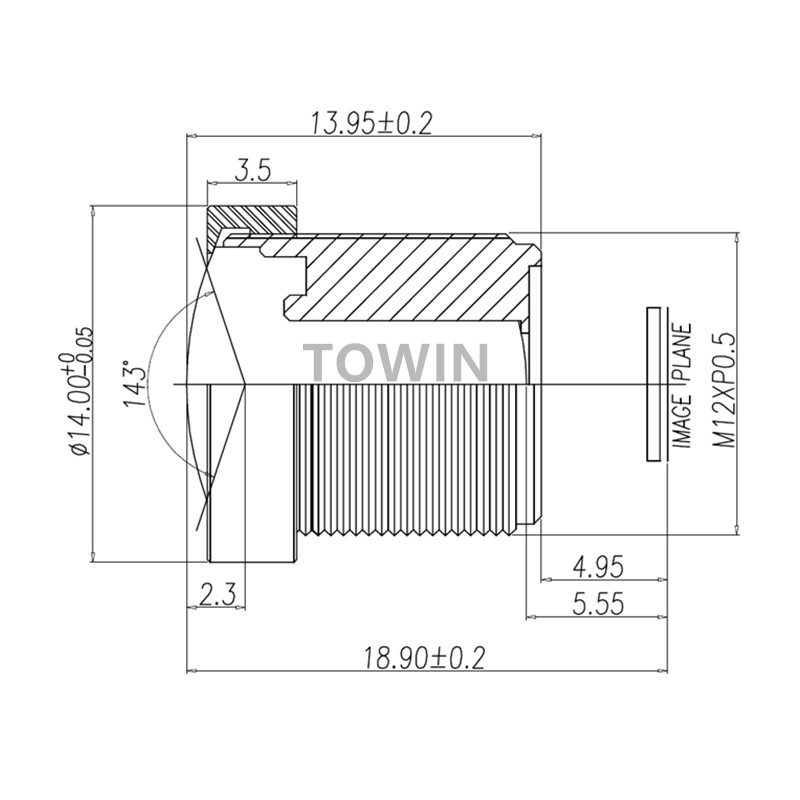

CCL12802125MP Wide Angle M12 S-mount 2.1mm board lens for IMX290 HFOV 125° HD megapixel
| IMAGE FORMAT | 1/2.8″ |
| FOCAL LENGTH | 2.1mm |
| F.O.V. | 156°(D) |
| 125°(H) | |
| 95°(V) | |
| RESOLUTION | Megapixel |
| APERTURE | F2.5 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 5.5mm |
| M.O.D. | 0.1m |
| LENS COMPONENT | 6G |
CCL12802125MP Wide Angle M12 S-mount 2.1mm board lens for IMX290 HFOV 125° HD megapixel
