CCL128021MP
Wide Angle HD CCTV M12 S-mount board lens 2.1mm IR corrected F1.6 IMX290 3MP

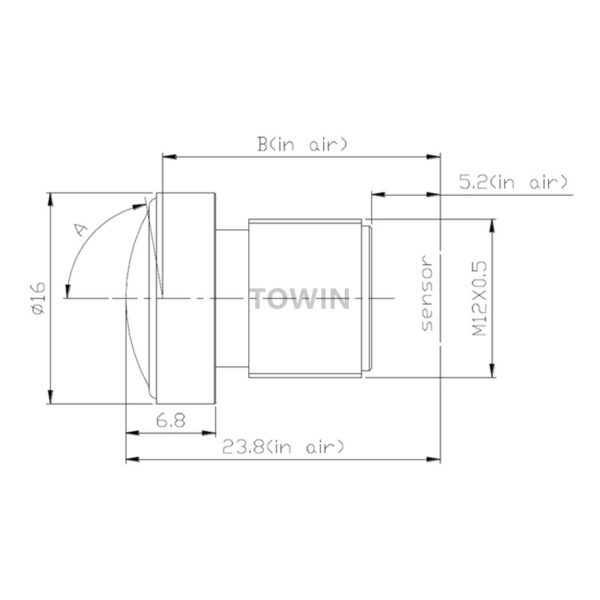

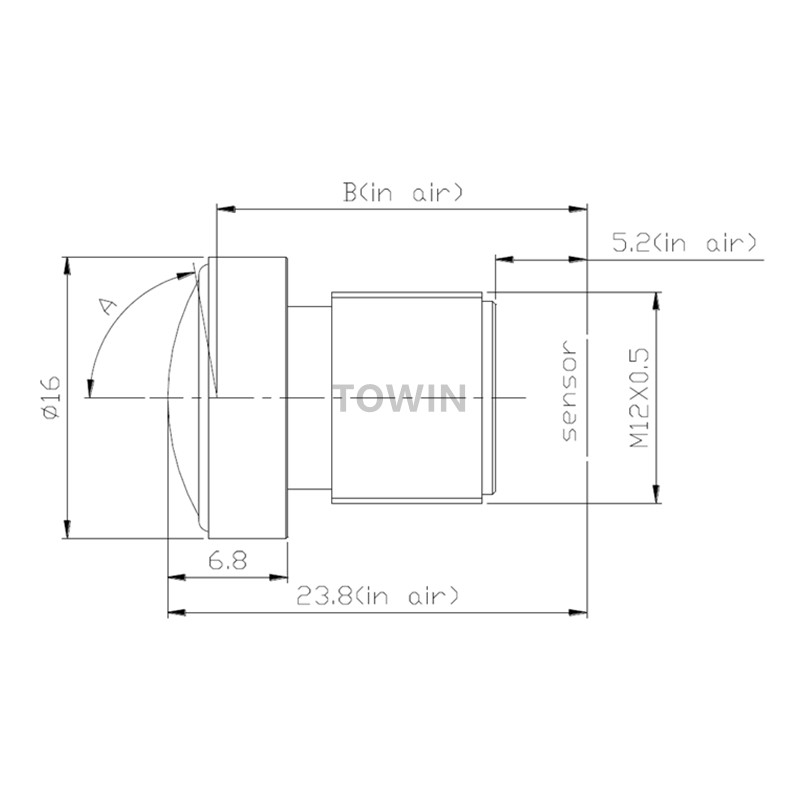

CCL128021MP Wide Angle HD CCTV M12 S-mount board lens 2.1mm IR corrected F1.6 IMX290 3MP
| IMAGE FORMAT | 1/2.8″ |
| FOCAL LENGTH | 2.1mm |
| F.O.V.(IMX290) | 156°(D) |
| 134°(H) | |
| 75°(V) | |
| RESOLUTION | 3 Megapixel |
| APERTURE | F1.8 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 5.2mm |
| TTL | 23.8 |
| M.O.D. | 0.3m |
| CONSTRUCTION | 7G |
| BARREL | Plastic |
| IR | Corrected |
CCL128021MP Wide Angle HD CCTV M12 S-mount board lens 2.1mm IR corrected F1.6 IMX290 3MP
