CCL12802520MPF

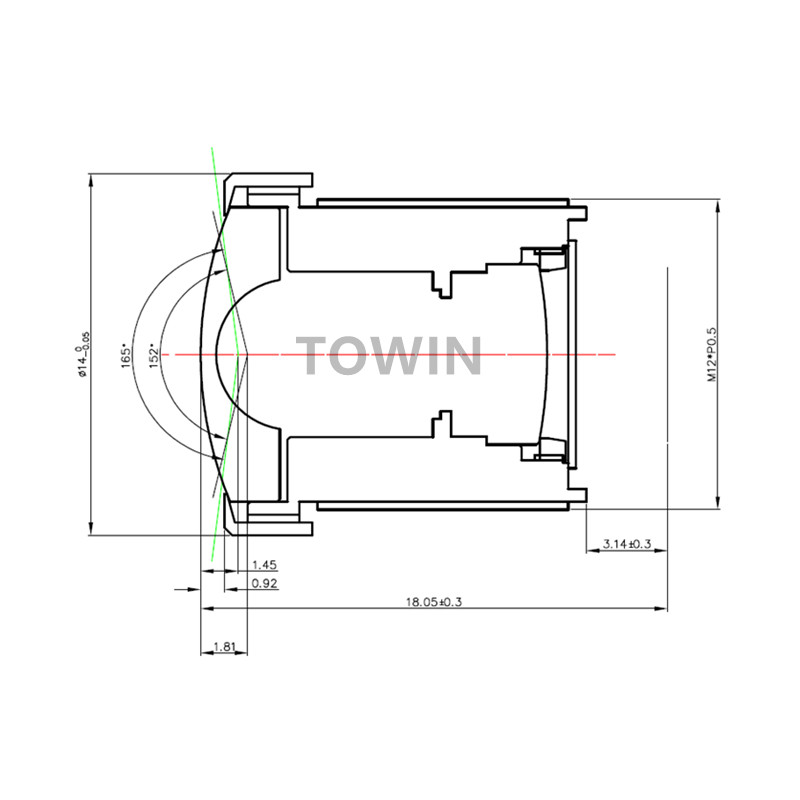

CCL12802520MPF M12 S-mount wide angle 2.5mm HD lens for IMX290
| IMAGE FORMAT | 1/2.8″ |
| FOCAL LENGTH | 2.5mm |
| F.O.V.(sensor IMX290) | 158°(D) |
| 130°(H) | |
| 72°(V) | |
| RESOLUTION | 4 Megapixel |
| OPTICAL DISTORTION | <-70% |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 5.04mm |
| T.T.L.(mm) | 18 |
| M.O.D. | 0.2m |
| CONSTRUCTION | 6G+IR cut off |
CCL12802520MPF M12 S-mount wide angle 2.5mm HD lens for IMX290
