M12 S-mount wide angle automotive car board lens 1/2.8″ 2.7mm for IMX290 with IR cut filter

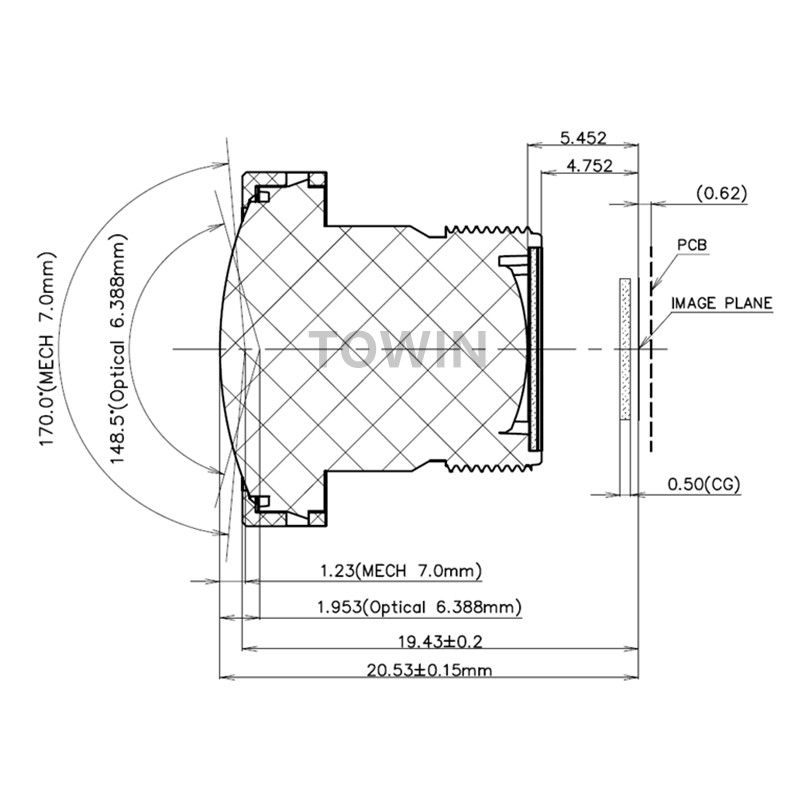

CCL12802720MPF M12 S-mount wide angle car board lens for IMX290 with IR cut filter
| IMAGE FORMAT | 1/2.8″ |
| FOCAL LENGTH | 2.7mm |
| F.O.V.(IMX290) | 148.5°(D) |
| 127°(H) | |
| 66°(V) | |
| RESOLUTION | 3 Megapixel |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 5.45mm |
| DIMENSION | Φ17.4×15.78mm |
| M.O.D. | 0.2m |
| CONSTRUCTION | 6G+IR cut |
CCL12802720MPF M12 S-mount wide angle car board lens for IMX290 with IR cut filter
