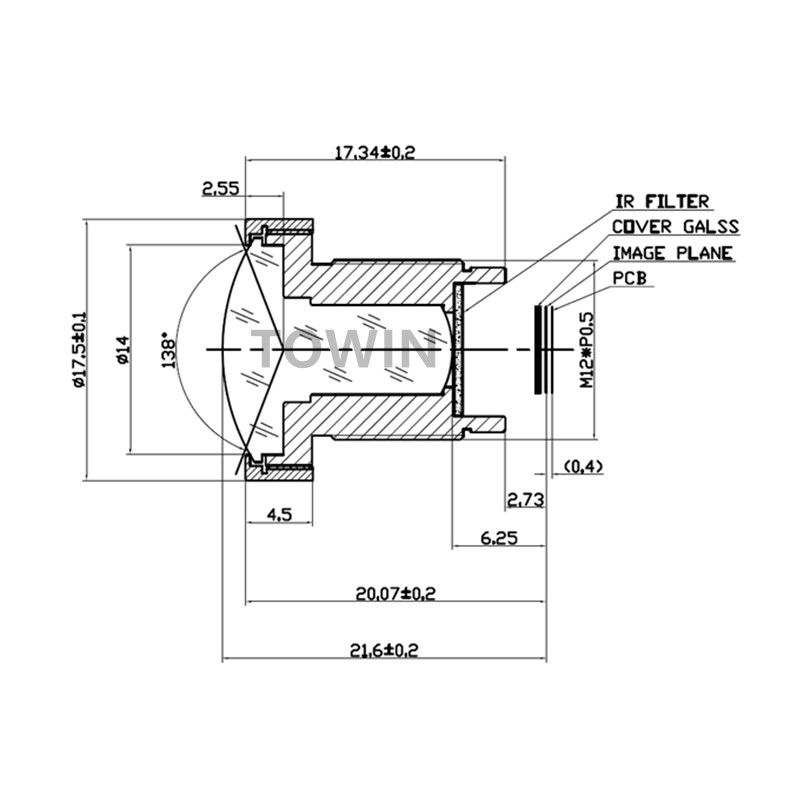

CCL128028MPF 1/2.8″ 2.8mm M12 S-mount wide angle HD lens
| IMAGE FORMAT | 1/2.8″ |
| FOCAL LENGTH | 2.8mm |
| F.O.V.(IMX290) | 132°(D) |
| 112°(H) | |
| 63°(V) | |
| RESOLUTION | 4 Megapixel |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 6.25mm |
| T.T.L.(mm) | 21.6 |
| M.O.D. | 0.2m |
| CONSTRUCTION | 6G+IRF |
CCL128028MPF M12 S-mount wide angle 2.8mm HD lens
