CCL128060MP

S06012505812 6mm low light M12 S-mount IR corrected CCTV lens-1

S06012505812

CCL132037MP 3.7mm M12 S-mount wide angle board lens-1

CCL132037MP

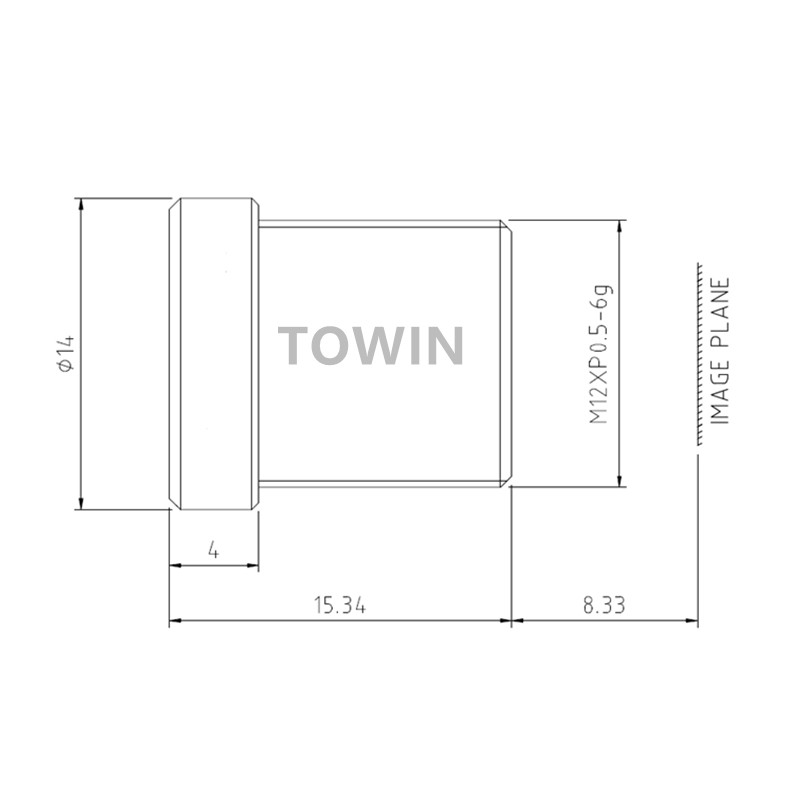

CCL128060MP 6mm M12 S-mount CCTV board lens

CCL128060MP 6mm M12 S-mount CCTV board lens

CCL128060MP

Categories: Megapixel CCTV Lens, S-Mount Lenses Tag: KN

Description
Additional information

CCL128060MP

IMAGE FORMAT	1/2.8″
FOCAL LENGTH	6mm
F.O.V.	66°(D)
	54°(H)
	31°(V)
RESOLUTION	3 MP
DISTORTION	<-20%
APERTURE	F1.8
MOUNT	M12x0.5
IRIS	Fixed
B.F.L.	9.55mm
T.T.L.	24.46mm
CONSTRUCTION	6G

CCL128060MP 6mm M12 S-mount CCTV board lens

CCL128060MP 6mm M12 S-mount CCTV board lens

Download Specs Sheet

Online contact

SENSOR	1/2.8"
E.F.L.	6mm
H. F.O.V.	54°
FNo.	1.8
Max Dist.	20%
IRIS	Fixed
MOUNT	M12x0.5
RESOLUTION	3MP
T.T.L.(mm)	24.5
FEATURE	CCTV, Low Light Sensitive
MARK	HOT LENSES
