CCL12816MP

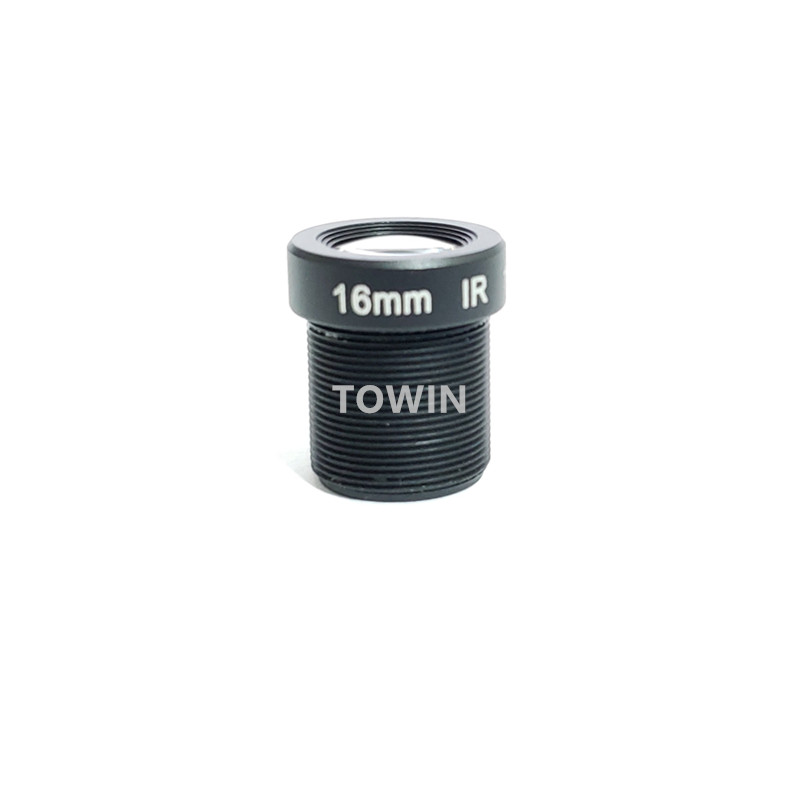

Low distortion 16mm 20° M12 s-mount board lens 1/2.8″ CCTV IR corrected HD 3MP security
CCL12816MP Low distortion 16mm 20° M12 s-mount board lens 1/2.8″ CCTV IR corrected HD 3MP security
| IMAGE FORMAT | 1/2.8″ |
| FOCAL LENGTH | 16mm |
| F.O.V. | 23°(D) |
| 20°(H) | |
| 13°(V) | |
| RESOLUTION | 3MP |
| DISTORTION | <0.2% |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| M.O.D. | 0.3m |
| T.T.L. | 21.1mm |
| B.F.L. | 5.75mm |
| CONSTRUCTION | 6G |

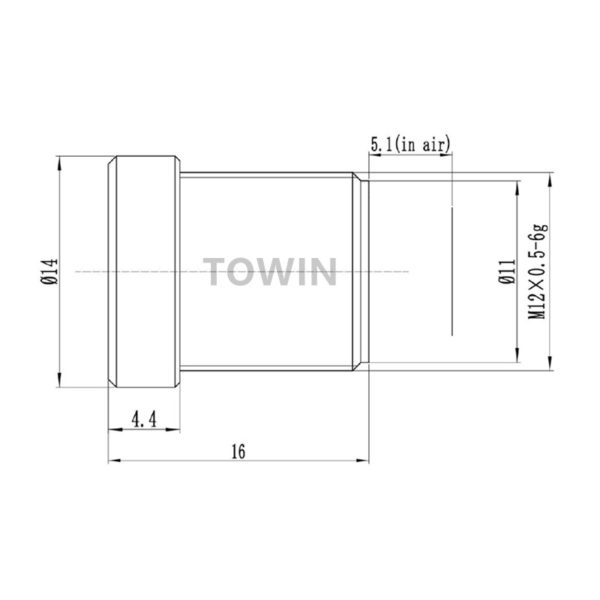

CCL12816MP Low distortion 16mm 20° M12 s-mount board lens CCTV IR corrected HD 3MP security-1
