1/3″ 1/2.9″ 2.1mm F2.0, 4megapixel wide angle M12 S-mount board lens with short T.T.L. 15mm.
CCL129021MPF is a 2.1mm wide angle M12 S-mount board lens. It is for 1/3″ 1/2.9″ sensors like AR1335, AR0330, AR0130, OG02B10, PS1210K. It is a 4 Megapixel HD lens with short T.T.L. for Car driving recorder.
| IMAGE FORMAT | 1/2.9″ |
| FOCAL LENGTH | 2.1mm |
| F.O.V. | 161°(D) |
| 141°(H) | |
| 82°(V) | |
| RESOLUTION | 4 Megapixel |
| DISTORTION | <-25% |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| T.T.L. | 15.12mm |
| B.F.L. | 3.72mm |
| M.B.F.L. | 3.37mm |
| M.O.D. | 0.3m |
| STRUCTURE | 2G5P+IRCF |

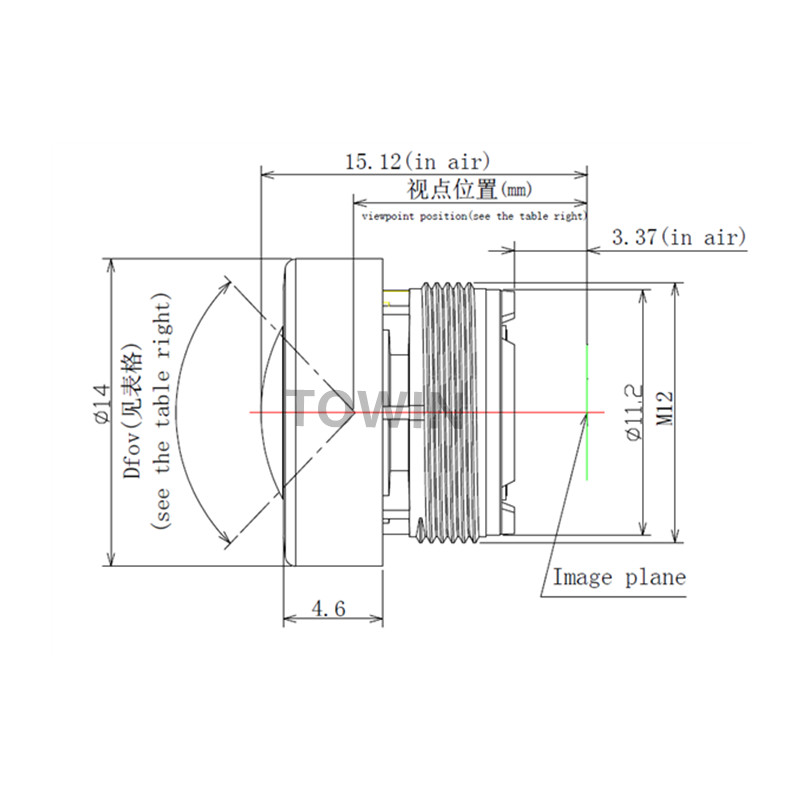

CCL129021MPF 2.1mm wide angle M12 S-mount board lens
