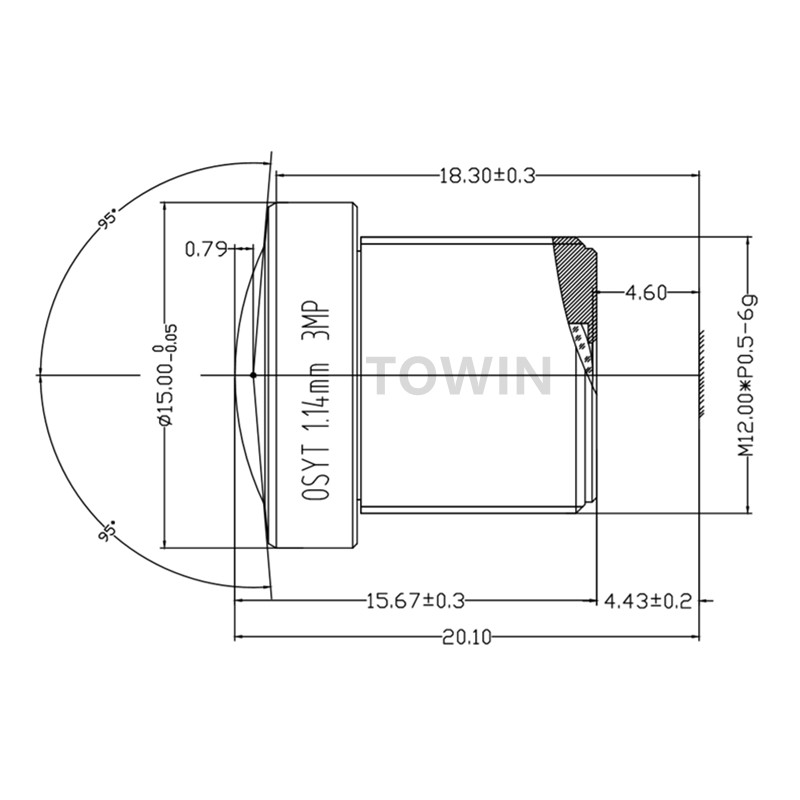

Fisheye CCTV HD lens IR corrected Φ3.4 1/3″ M12 lens 190° 3MP F2.3 security surveillance
CCL130114MP Fisheye CCTV HD lens IR corrected Φ3.4 1/3″ M12 lens 190° 3MP F2.3 security surveillance
| IMAGE FORMAT | Φ3.4, 1/3″ |
| FOCAL LENGTH | 1.14mm |
| F.O.V. | 190°(D) |
| 190°(H) | |
| 190°(V) | |
| RESOLUTION | 3Megapixel |
| DISTORTION | <-105% |
| APERTURE | F2.3 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.2m |
| T.T.L. | 20mm |
| M. B.F.L. | 4.43mm |
| CONSTRUCTION | 6G |
CCL130114MP Fisheye CCTV HD lens IR corrected Φ3.4 M12 lens 190° 3MP F2.3 security surveillance
