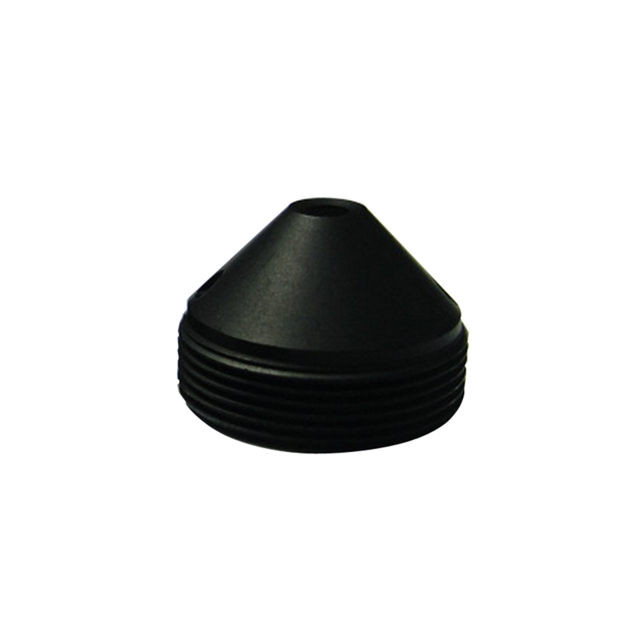

CCL13025PMP

1/3″ 2.5mm cone M12 pinhole lens, megapixel wide angle lens, miniature size for ATM camera.

Description
Additional information

CCL13025PMP is a 2.5mm cone M12 pinhole lens. It is a megapixel wide angle lens for 1/3″. And it has miniature size for ATM camera.

IMAGE FORMAT	1/3″
FOCAL LENGTH	2.5mm
F.O.V.	140°(D)
	88°(H)
	63°(V)
RESOLUTION	MP
APERTURE	F2.5
MOUNT	M12X0.5
IRIS	Fixed
FOCUS	Manual
ZOOM	Fixed
M.O.D.	0.2m

Download Specs Sheet

Online contact

SENSOR	1/3"
E.F.L.	2.5mm
RESOLUTION	1MP
FNo.	2.5
MOUNT	M12x0.5
IRIS	Fixed
FEATURE	Pinhole
MARK	HOT LENSES
H. F.O.V.	88°
