Low distortion wide angle 3mm 1/3″ 77° M12 mount lens with HD 5MP rectilinear scanning
CCL130298MPF Low distortion wide angle 3mm 1/3″ 77° M12 mount lens with HD 5MP rectilinear scanning
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 2.98 mm |
| F.O.V. | 88°(D) |
| 77°(H) | |
| 61°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-1% |
| APERTURE | F3.5 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| B.F.L. | 3.41mm |
| T.T.L. | 15.59mm |

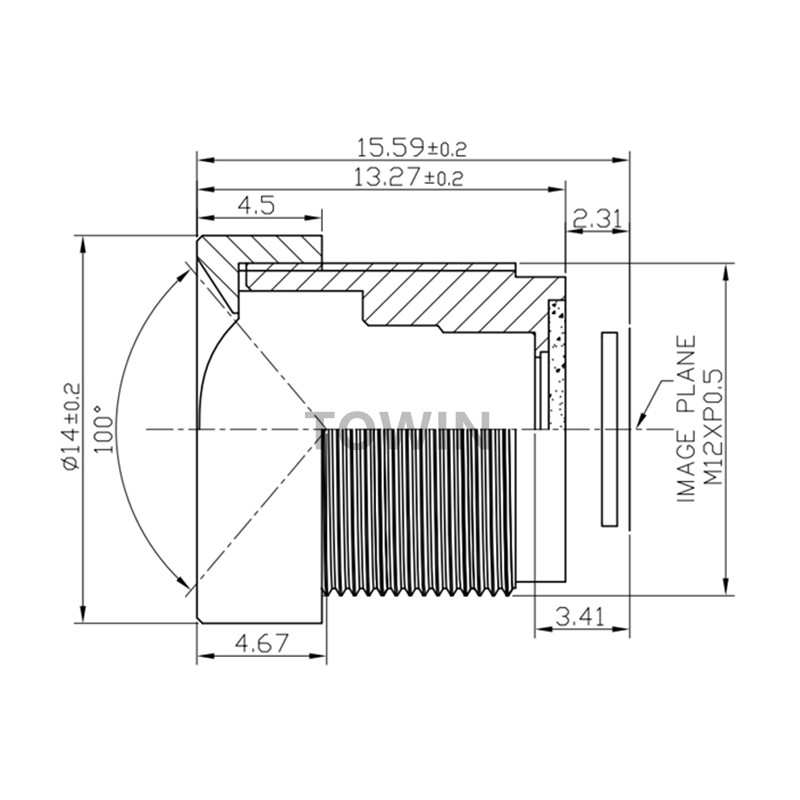

| DIMENSION(mm) | Φ14×13.27 |
| LENS COMPOMEMT | 4E |
