CCL13030MPF
Low distortion wide angle 82° M12 S-mount board lens 1/3″ 3mm F4.0 HD 3MP rectilinear scanning
CCL13030MPF Low distortion wide angle 82° M12 S-mount board lens 1/3″ 3mm F4.0 HD 3MP rectilinear scanning
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 3mm |
| F.O.V. | 90°(D) |
| 82°(H) | |
| 62°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-1% |
| APERTURE | F4.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |

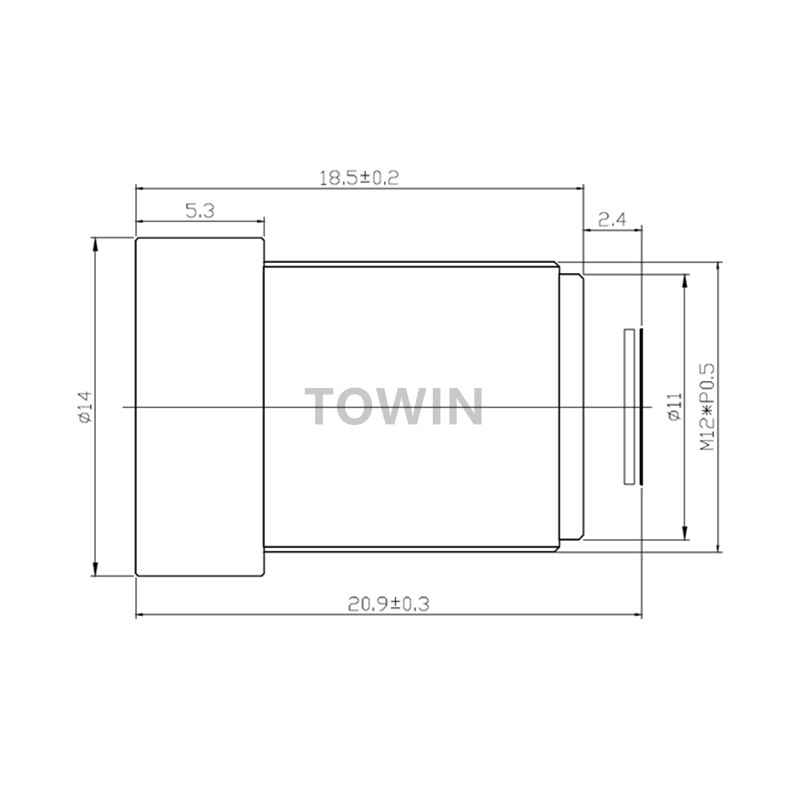

| T.T.L. | 20.9mm |
| DIMENSION | Φ14×18.5mm |
| CONSTRUCTION | 2G2P+IR cut |
CCL13030MPF Low distortion wide angle 82° M12 S-mount board lens 3mm F4.0 HD 3MP rectilinear scanning
