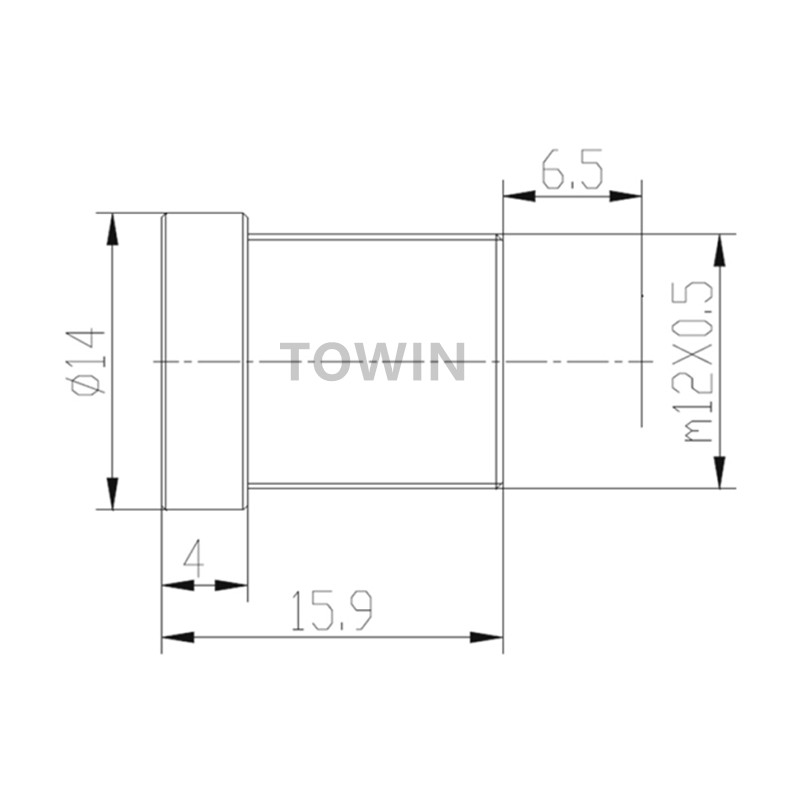

CCL13036MPR2 M12 S-mount wide angle 3.6mm CCTV board lens with IR corrected.
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 3.6mm |
| F.O.V. | 104°(D) |
| 75°(H) | |
| 58°(V) | |
| RESOLUTION | 3Megapixel |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 7.1mm |
| T.T.L.(mm) | 22.4 |
| M.O.D. | 0.3m |
| IR | Corrected |
CCL13036MPR2 M12 S-mount wide angle CCTV board lens with IR corrected
