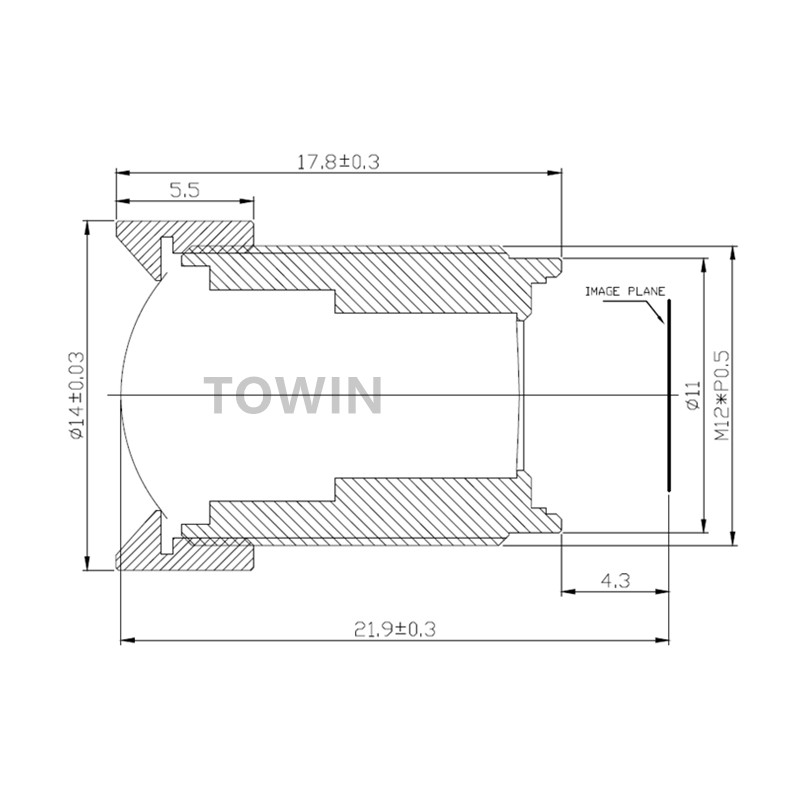

Low distortion wide angle 4.1mm F4.0 M12 mount lens HD 3MP rectilinear scanning
CCL13041MP Low distortion wide angle 4.1mm F4.0 M12 mount lens HD 3MP rectilinear scanning
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 4.1mm |
| F.O.V. | 74°(D) |
| 63°(H) | |
| 49°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-0.4% |
| APERTURE | F4.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 21.9mm |
| DIMENSION | Φ14×17.8mm |
| LENS COMPOMEMT | 3G2P |
| SENSOR | |
|---|---|
| E.F.L. | |
| H. F.O.V. | |
| FNo. | |
| Max Dist. | |
| IRIS | |
| MOUNT | |
| RESOLUTION | |
| T.T.L.(mm) | |
| FEATURE | |
| MARK |
