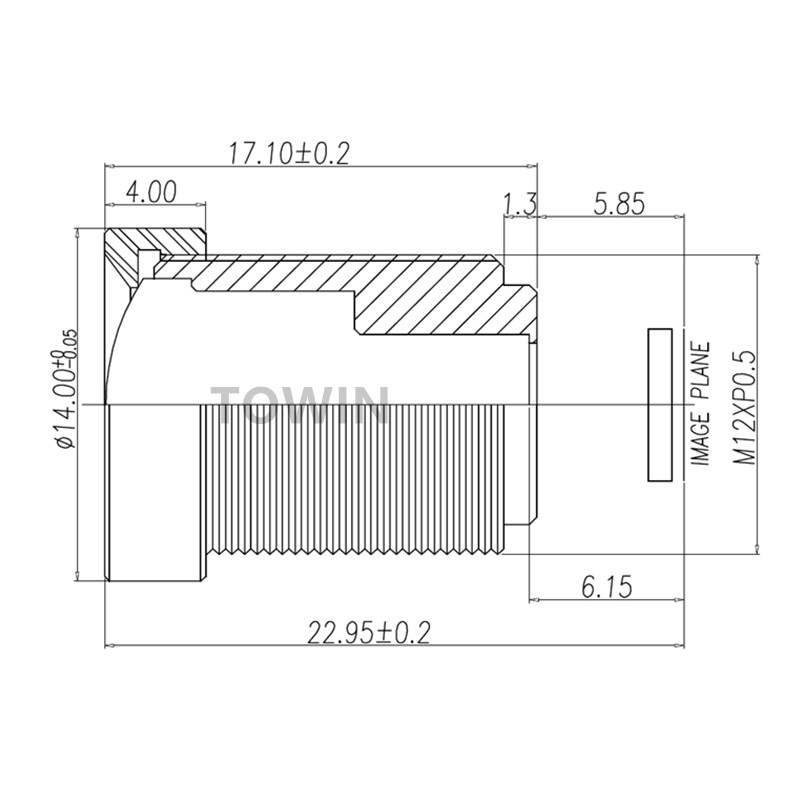

CCL13045MP M12 S-mount wide angle 4.5mm board lens for 1/3″ Megapixel sensor
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 4.5mm |
| F.O.V. | 78°(D) |
| 63°(H) | |
| 47°(V) | |
| RESOLUTION | Megapixel |
| APERTURE | F2.2 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 6.15mm |
| T.T.L. | 22.95 |
| M.O.D. | 0.2m |
| CONSTRUCTION | 4G+IR cut |
CCL13045MP M12 S-mount wide angle 4.5mm board lens
