Low distortion wide angle 6mm 1/3.2″ 41° M12 mount lens HD 8MP F3.5 rectilinear scanning
CCL132060MPF Low distortion wide angle 1/3.2″ 6mm 41° M12 mount lens HD 8MP F3.5 rectilinear scanning
| IMAGE FORMAT | 1/3.2″ |
| FOCAL LENGTH | 6mm |
| D.F.O.V. | 52° |
| H.F.O.V. | 41° |
| RESOLUTION | 8 MP |
| OPTICAL DISTORTION | <-0.1% |
| APERTURE | F3.5 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.B.F.L. | 2.64mm |
| M.O.D. | 0.1m |
| T.T.L. | 9.83mm |

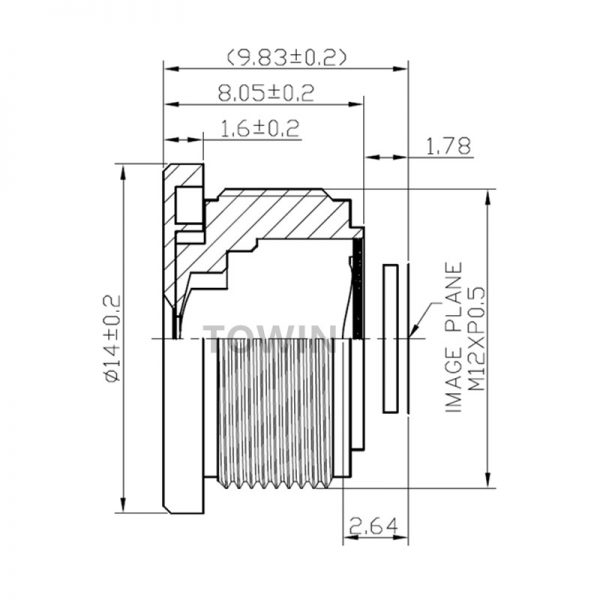

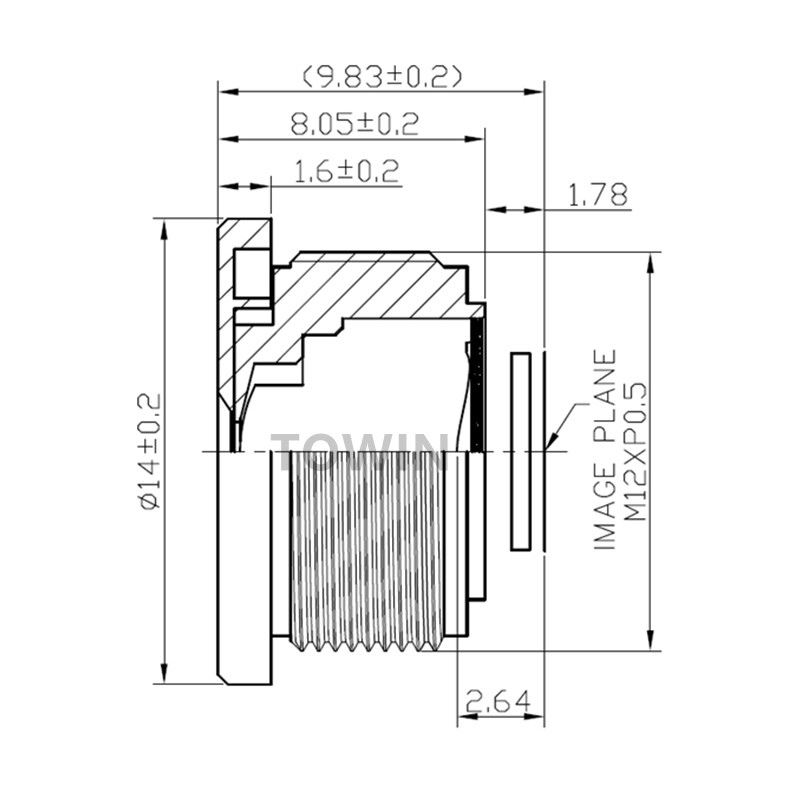

| DIMENSION | Φ14x8mm |
| STRUCTURE | 2G2P+IRF |
CCL132060MPF Low distortion wide angle 6mm 41° M12 mount lens HD 8MP F3.5 rectilinear scanning
