CCL140298MPF
CCL140298MPF
Low distortion wide angle 1/4″ 3mm 62° M12 mount lens with HD 5MP rectilinear scanning
CCL140298MPF Low distortion wide angle 1/4″ 3mm 62° M12 mount lens with HD 5MP rectilinear scanning
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 2.98mm |
| F.O.V. | 73°(D) |
| 62°(H) | |
| 49°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-0.2% |
| APERTURE | F3.5 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.3m |

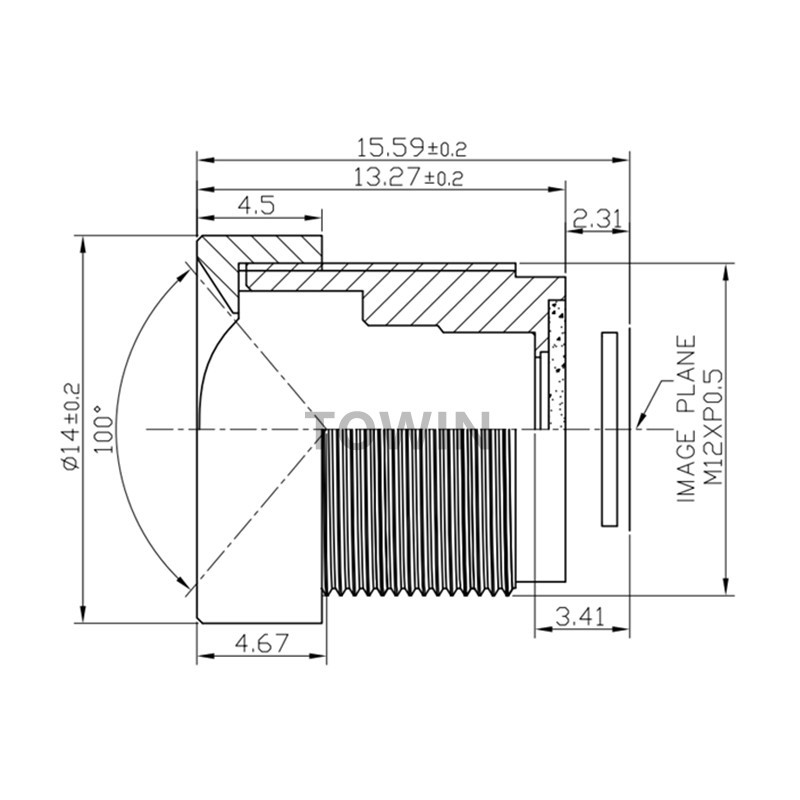

| T.T.L. | 15.59mm |
| STRUCTURE | 2G2P+IRF |
CCL140298MPF Low distortion wide angle 3mm 62° M12 mount lens with HD 5MP rectilinear scanning
