Low distortion wide angle 3mm 62° M12 mount lens 1/4″ F4.0 HD 5MP rectilinear scanning
CCL14030MPFR Low distortion wide angle 3mm 62° M12 mount lens 1/4″ F4.0 HD 5MP rectilinear scanning
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 3mm |
| F.O.V. | 73.5°(D) |
| 62°(H) | |
| 49.5°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-1% |
| APERTURE | F4.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 20.9mm |

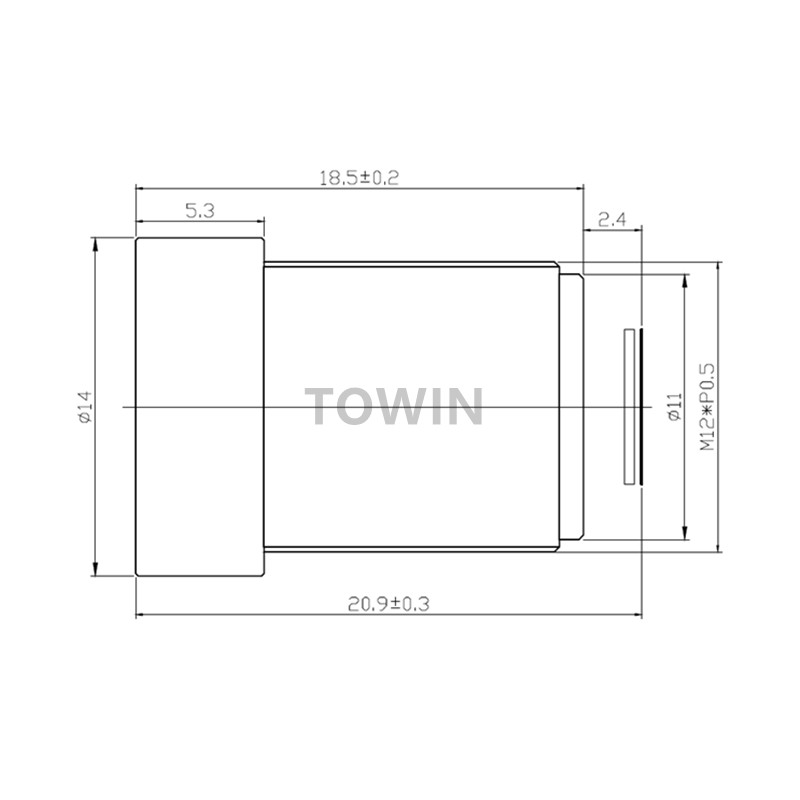

| DIMENSION | Φ14×18.5mm |
| LENS COMPOMEMT | 6E+IR cut |
CCL14030MPFR Low distortion wide angle 3mm 62° M12 mount lens F4.0 HD 5MP rectilinear scanning
