CCL14035MP
Low distortion wide angle 3.5mm 55° M12 mount lens 1/4″ HD 5MP rectilinear scanning
CCL14035MP Low distortion wide angle 3.5mm 55° M12 mount lens 1/4″ HD 5MP rectilinear scanning
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 3.5mm |
| F.O.V. | 65°(D) |
| 55°(H) | |
| 40°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-0.4% |
| APERTURE | F3.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 19mm |

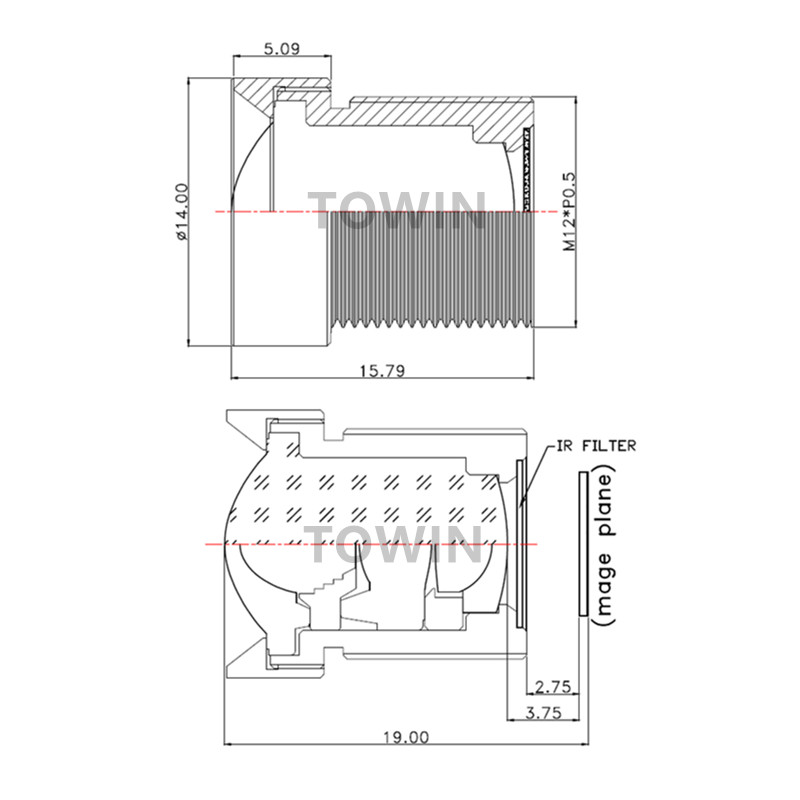

| DIMENSION | Φ14×15.79mm |
| LENS COMPOMEMT | 2G2P |
CCL14035MP Low distortion wide angle 3.5mm 55° M12 mount lens HD 5MP rectilinear scanning
