CCL14040MPF

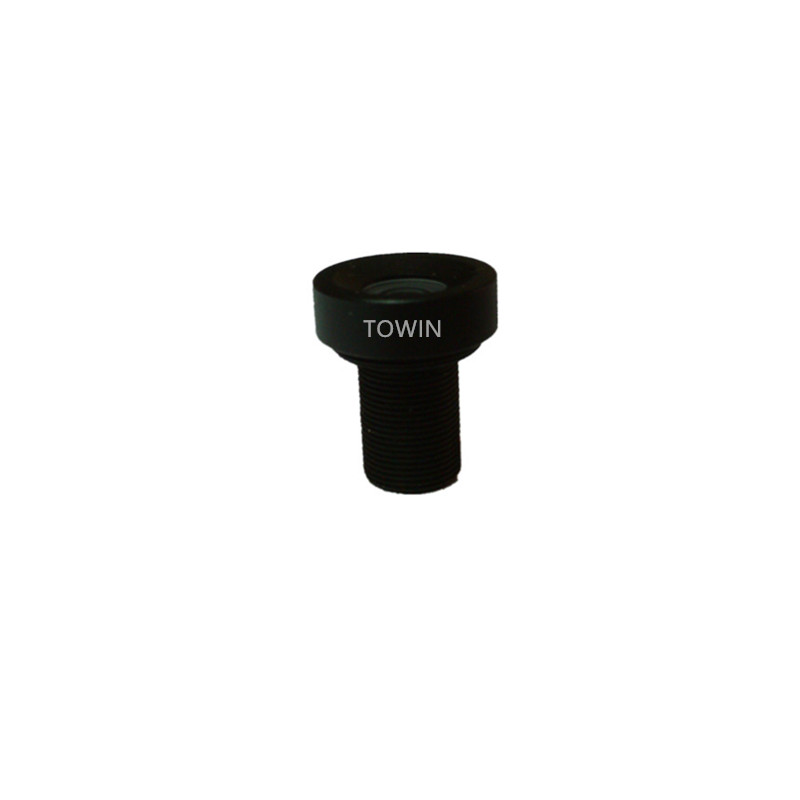

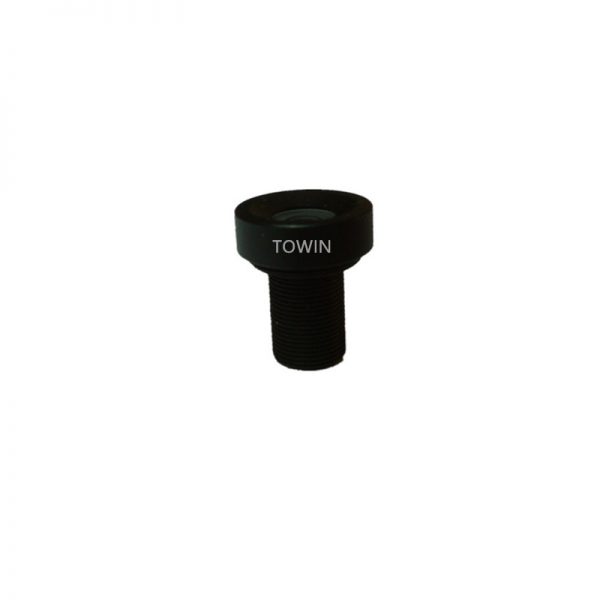

Low distortion M8 mount lens for 1/4″ sensor OV9712 with short T.T.L for scanning camera.
| SENSOR | 1/4″ |
| E.F.L. | 4.0 |
| F.O.V. | 62°(D) |
| 48°(H) | |
| 37°(V) | |
| MP | 2 MP |
| Max Dist. | 1% |
| FNo. | 2.0 |
| MOUNT | M8x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L.(mm) | 18.34 |
| DIMENSION | Φ11×16.56mm |
| STRUCTURE | 5G+IRF |

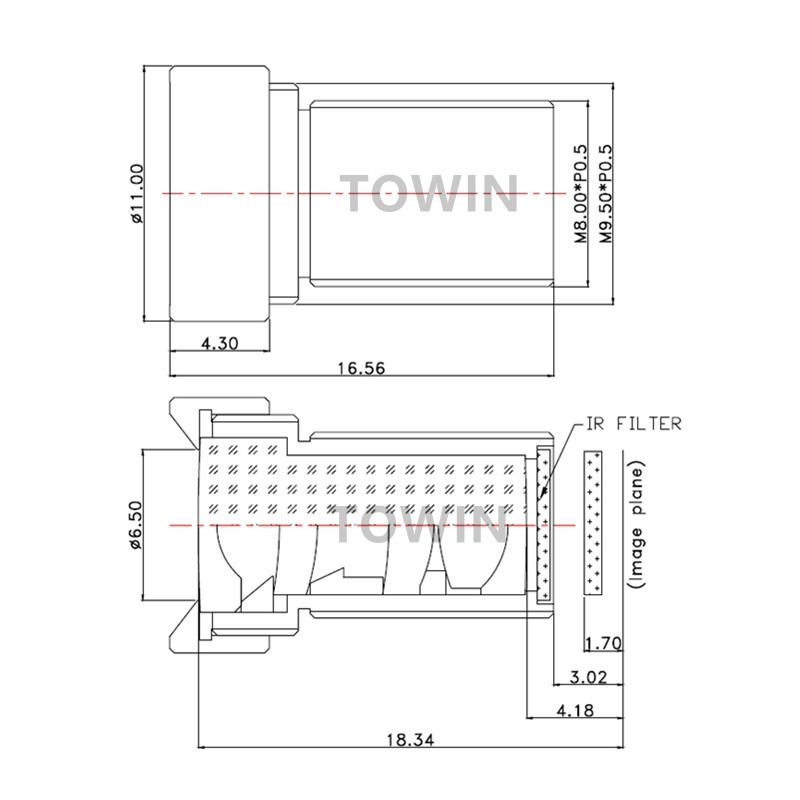

CCL14040MPF Low distortion 4mm M8 mount lens
