CCL15016F
CCL15016F
Low distortion wide angle 100° M7 mount lens 1/5″ for OV7740 CCTV surveillance short TTL

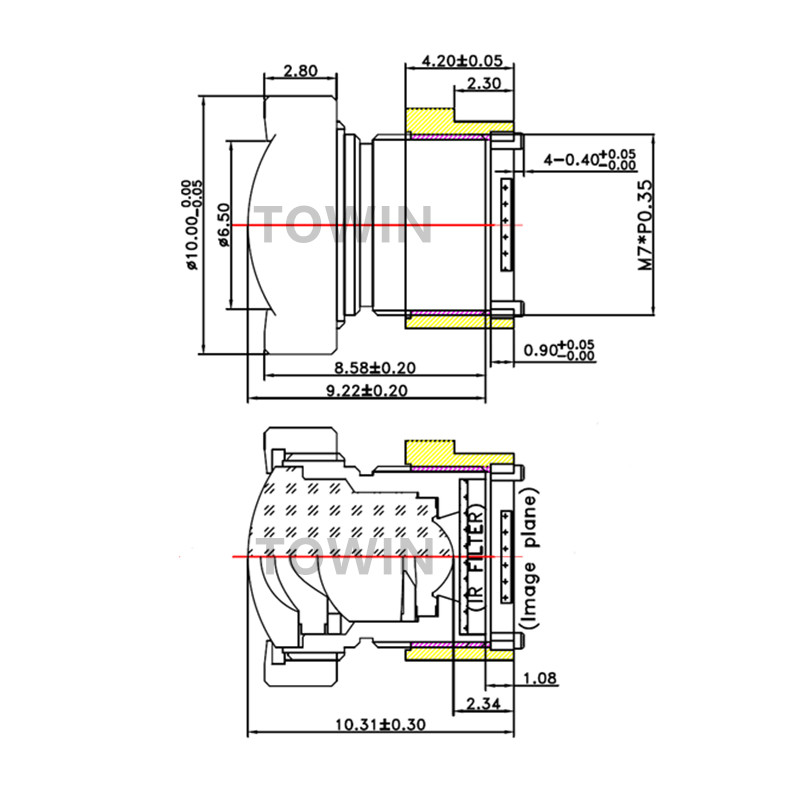

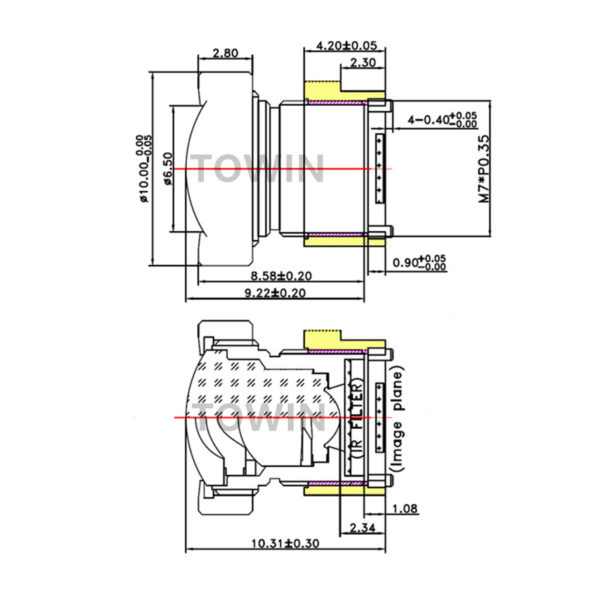

CCL15016F Low distortion wide angle 100° M7 mount lens 1/5″ for OV7740 CCTV surveillance short TTL
| IMAGE FORMAT | 1/5″ |
| FOCAL LENGTH | 1.6mm |
| F.O.V. | 116°(D) |
| 100°(H) | |
| 85°(V) | |
| RESOLUTION | VGA |
| DISTORTION | <-3% |
| APERTURE | F2.0 |
| MOUNT | M7X0.35 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| T.T.L. | 10.31mm |
| LENS COMPOMEMT | 2G2P+IR |
CCL15016F Low distortion wide angle 100° M7 mount lens for OV7740 CCTV surveillance short TTL
