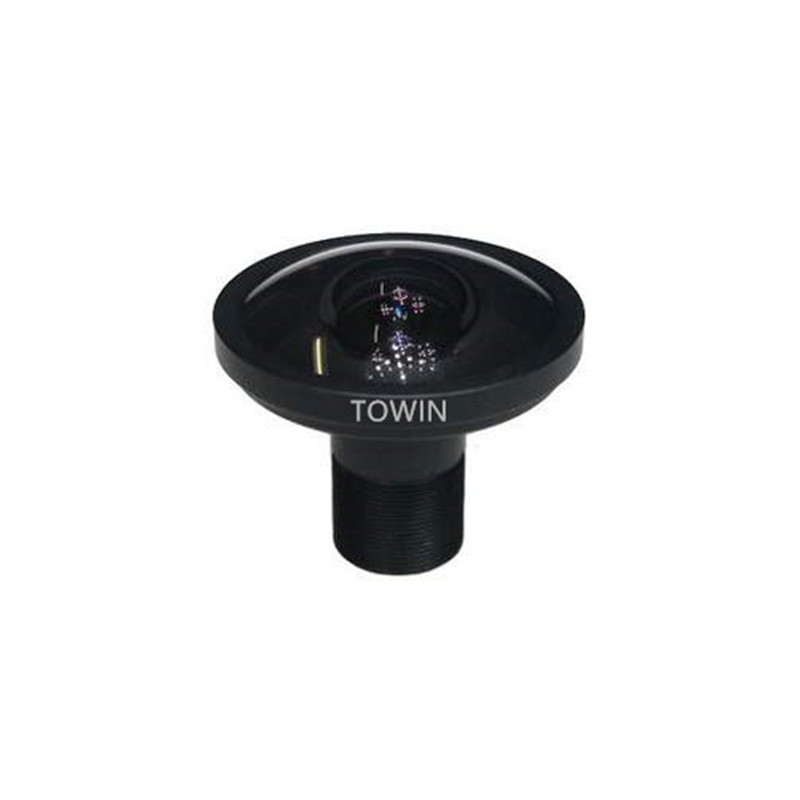

8 megapixel M12 fisheye lens with image circle Φ4.7 mm 1/2″ 190 degree

CCL120155MPF

8 megapixel M12 fisheye lens with image circle Φ4.7 mm, for 1/2″ sensor 190 degree FOV 360 panoramic cameras

Description
Additional information

The 8 megapixel M12 fisheye lens CCL120155MPF has a image circle Φ4.7 mm to match 1/2″ sensor to get more than 190 degree FOV. It is widely used in 360 panoramic cameras.

SENSOR	1/2″
E.F.L.	1.55
D. F.O.V.	192°
H. F.O.V.	192°
V. F.O.V.	180°
RESOLUTION	8MP
Max Dist.	100%
FNo.	3.0
MOUNT	M12x0.5
IRIS	Fixed
M.O.D.	0.1m
T.T.L.(mm)	30.5
DIMENSION	Φ32×27.5
STRUCTURE	8G+1IR

Download Specs Sheet

Online contact

SENSOR	1/2"
E.F.L.	1.55mm
H. F.O.V.	192°
RESOLUTION	8MP
Max Dist.	100%
FNo.	3.0
MOUNT	M12x0.5
IRIS	Fixed
T.T.L.(mm)	30.5
MARK	HOT LENSES
