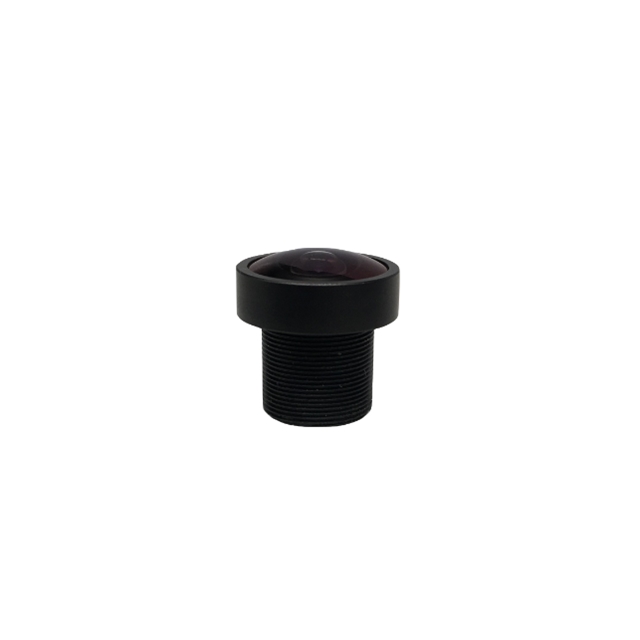

CCL12301724MPF

Fisheye lens, image circle Φ4.6 for 1/2.3″ sensor IMX 412 SONY (12,3MP), FOV 190 degree for traffic indoor application.

Description
Additional information

CCL12301724MPF is a fisheye lens. Its image circle is Φ4.6 for 1/2.3″ sensors ,such as IMX 412 SONY, 1/2.3” (12,3MP). And it could use in traffic indoor application with Opening angle: diagonal >190° horizontal>190° vertical>190°.

IMAGE FORMAT	Φ4.6mm
FOCAL LENGTH	1.7mm
F.O.V.	190°(D)
	190°(H)
	190°(V)
RESOLUTION	16Megapixel
OPT DISTORTION	<-101%
APERTURE	F2.4
MOUNT	M12x0.5
IRIS	Fixed
M.O.D.	0.1m
T.T.L.	19.90mm
B.F.L.	4mm
COMPONENT	7G+IRF

Download Specs Sheet

Online contact

SENSOR	Φ4.6
E.F.L.	1.7mm
H. F.O.V.	190°
RESOLUTION	16MP
Max Dist.	101%
FNo.	2.4
MOUNT	M12x0.5
IRIS	Fixed
T.T.L.(mm)	19.90
FEATURE	Fisheye
